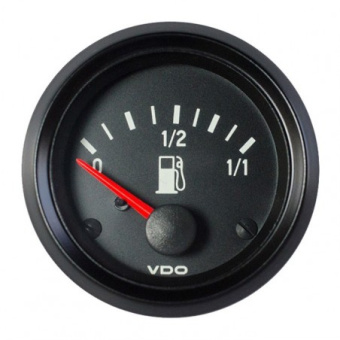

The VDO Cockpit International fuel level gauge 301-040-002C is a rugged 52 mm panel instrument built for accurate tank level monitoring in 24 V systems, using a VDO dip pipe sender signal of 90–0.5 Ohm. Designed for clear, quick readability, it combines a black dial with a red backlit pointer, 90° needle sweep, and multi-color 24 V floodlight illumination (white, green, red). With IP64 front protection and a -30°C to +85°C operating range, it suits demanding automotive and industrial installations where dependable fuel indication matters.
- Description
- Ask a Question
-
VDO Cockpit International 52 mm Fuel Level Instrument for 24 V Systems
The VDO 301-040-002C is a Cockpit International fuel level gauge designed for precise level indication from empty to full on vehicles and machinery. Built for 24 V electrical systems, it works with a VDO dip pipe sender using a 90–0.5 Ohm signal and provides a clear 90° needle sweep for confident at-a-glance monitoring.
Compatibility
- 24 V systems (21.5–30 V DC operating range)
- Systems using a VDO dip pipe sender signal 90–0.5 Ohm (EU adjustable)
- Analog fuel level gauge systems
Technical Specifications
Part Number 301-040-002C Series Cockpit International Fuel Level Scale 0 - 1/2 - 1/1 Sender Signal VDO dip pipe sender 90–0.5 Ohm (EU adjustable) Operating Voltage 21.5–30 V DC Current Consumption (Without Illumination) < 96 mA Deflection Angle 90° Installation Hole Diameter 52 mm (2 1/16 inch) Outside Diameter 59.25 mm (2 1/3 inch) Installation Depth 67.5 mm Dial Color Black Pointer Red backlight Dial Illumination Floodlight 24 V, 2 W (white, green, red) Front Protection Rating IP64 (DIN 40050), ozone-proof, UV-proof Rear Protection Rating IP42 (DIN 40050) Operating Temperature -30°C to +85°C Reverse Polarity Protection Yes Connector Type AMP male blade connector 6.3 x 0.8 mm (3 for signal, 2 for illumination) Lens Single anti-glare Bezel Triangular black (threaded ring) Housing Flame-retardant plastic Standards CE compliant; EMC tested to EN 13309 and ISO 13766 Country of Origin Malaysia EAN 4103590689412 HS Code 85122000 Weight 1.20 kg
Product Details
- Brand: VDO
- Instrument Type: Analog fuel level gauge
- Installation Location: Dashboard or control panel (52 mm panel cutout)
- System Role: Converts the sender’s resistance signal into a stable pointer indication for continuous fuel level monitoring
- Packaging: OEM bulk (10 pieces)
Features
- Accurate level indication across the 0 - 1/2 - 1/1 scale when paired with the specified VDO dip pipe sender signal
- High-visibility presentation with black dial, red backlit pointer, and selectable floodlight illumination colors
- Designed for harsh environments with IP64 front sealing and ozone and UV resistance
- Stable operation in demanding conditions from -30°C to +85°C
- Panel-friendly wiring via AMP male blade connectors for signal and illumination circuits
-
