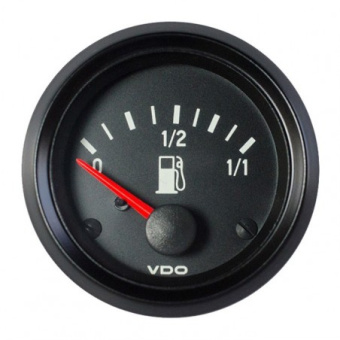

The VDO Cockpit International 301-030-001C fuel level gauge is a 52 mm black analog instrument for accurate tank level monitoring on 12V systems, scaled for empty, half, and full indications. Built for the VDO level measurement system, it is designed to work with a 3–180 Ohm EU lever arm sender and provides stable, easy-to-read feedback at the dashboard or helm for confident day-to-day operation.
- Description
- Ask a Question
-
VDO Cockpit International 52 mm Fuel Level Instrument (3–180 Ohm, 12V)
The VDO 301-030-001C is a Cockpit International series fuel level gauge designed for dependable level measurement using an analog 3–180 Ohm sender signal. With a classic black dial and a standard 52 mm panel installation size, it is an excellent choice for clean, OEM-style dashboard or helm layouts where quick, at-a-glance fuel status matters.
Compatibility
- VDO EU Lever Arm Fuel Level Sender (3–180 Ohm)
Technical Specifications
Part Number 301-030-001C Series Cockpit International Fuel Level Scale 0 - 1/2 - 1/1 Sender Signal Range 3 - 180 Ohm (Empty to Full) Operating Voltage 11 - 16 Volt DC Current Consumption (Without Illumination) < 86 mA Reverse Polarity Protection Yes Panel Hole Diameter 52 mm (2 1/16 inch) Outside Diameter 59.25 mm (2 1/3 inch) Installation Depth 67.5 mm Locking Height with Bracket 0.5 mm - 8 mm Deflection Angle 90° Dial Color Black Pointer Red backlight Warning Indication None Communication Analog Connection AMP male blade connector 6.3 x 0.8 mm (3x) Illumination Connection AMP male blade connector 6.3 x 0.8 mm (2x) Lens Single anti-glare Bezel Triangular black (threaded ring) Bezel Interchangeable Yes (special tool required) Front Protection Class IP64 (DIN 40050), ozone proof, UV proof Rear Protection Class IP42 (DIN 40050) Operating Temperature -30°C to +85°C CE Standard Yes EMC Test According to EN 13309 and ISO 13766 Nominal Position NL 0 to NL 90 (DIN 16257) Housing Plastic, flame retardant Predecessor 301-910B HS Code 85122000 EAN Code 4103590689375 Weight 1.20 kg Country of Origin Malaysia Packaging VDO Instruments OEM bulk (10 pieces)
Product Details
- Brand: VDO
- Component Type: Fuel level gauge
- System Use: VDO level measurement (analog)
- Panel Fitment: 52 mm instrument hole for streamlined dashboards and helm panels
Features
- Clear 0 / 1/2 / 1/1 scale for fast, intuitive fuel checks
- Matched to 3–180 Ohm EU sender signals for correct calibration across the range
- Designed for reliable operation on 11–16V DC electrical systems
- Durable Cockpit International styling with IP-rated front and rear protection for demanding environments
- OEM bulk pack format: 10 fuel level gauges
OEM Package Contents (10 Pieces)
- VDO Cockpit International 301-030-001C fuel level gauge
- Steel bracket, zinc-plated and chromatized
-
