The VDO CANBus DAB+ blackbox radio (CRD8612UBA, 2801100098351) is a 12V 1-DIN in-dash head unit designed for modern vehicles using J1939 CANBus, combining worldwide FM RDS plus MW, LW, and digital DAB+ reception with USB media playback and Bluetooth hands-free and audio streaming. With a built-in amplifier rated up to 4 x 41 W max music power, rear USB and AUX connectivity, and support for wired and wireless CarPlay and Android Auto, it delivers a clean, connected upgrade for everyday driving and commercial applications.
- Description
- Ask a Question
-
12V CANBus DAB+ 1-DIN Blackbox Radio with Bluetooth and USB

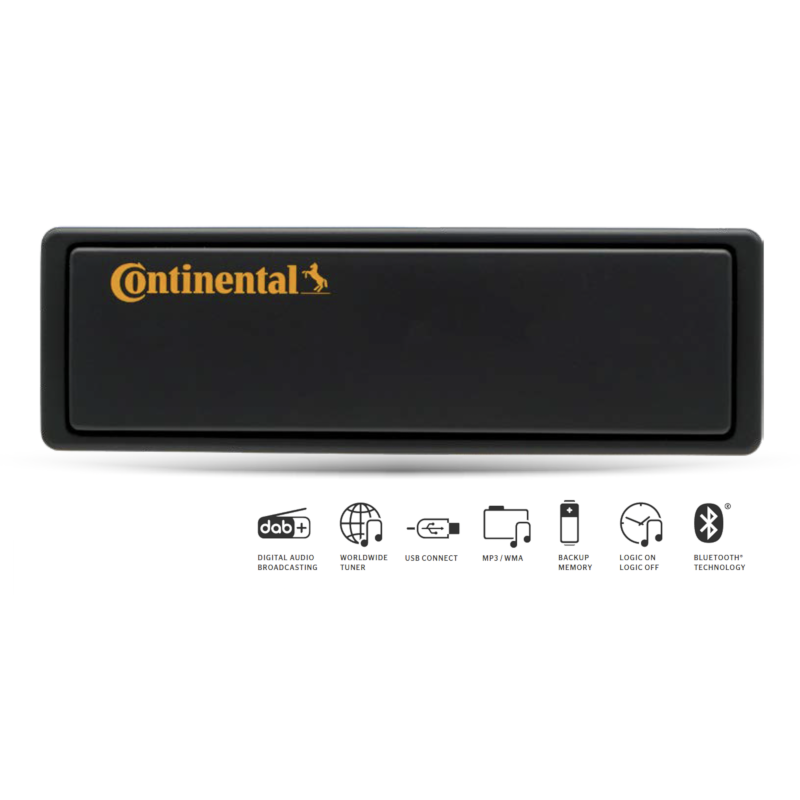

The VDO 2801100098351 (model CRD8612UBA) is a CANBus-enabled in-dash radio engineered for 12V vehicles and designed to integrate into J1939 electrical architectures. It combines analog and digital radio reception (FM RDS, MW, LW, and DAB+) with modern media and phone functions such as USB playback and Bluetooth connectivity, delivering a practical infotainment upgrade in a standard 1-DIN format.
Compatibility
- 12V DC vehicles with a 1-DIN radio mounting slot
- Vehicles using CANBus radio communication (J1939)
Technical Specifications
Part Number 2801100098351 Model CRD8612UBA Operating Voltage 12V DC Mounting 1-DIN Dimensions (W x H x D) 188 x 58.5 x 197 mm Color Black Weight 1.43 kg Radio Bands FM (RDS), MW, LW, DAB+ Digital Radio DAB, DAB+, DMB-A (DAB antenna not included) Maximum Audio Power 4 x 41 W RMS Power 4 x 20 W Media Inputs Rear USB, rear AUX USB Support USB 1.1 / USB 2.0; MP3, WMA, AAC, FLAC; JPEG; MPEG, MP4, AVI; charging up to 2.1 A Bluetooth Hands-free (HSP, HFP) and audio streaming (A2DP, AVRCP); phonebook and call logs; external microphone Smartphone Integration CarPlay (wired and wireless); Android Auto (wired and wireless) Camera Input AHD / PAL / NTSC supported Antenna Connector DIN - ISO Country of Origin China HS Code 85272198
Product Details
- Brand: VDO
- Product Type: CANBus-enabled DAB+ blackbox car radio head unit
- CANBus: J1939 radio integration
- Tuner Functions: Worldwide FM RDS tuner with LW and MW; AF, TA, EON, PTY; DAB/DAB+/DMB-A
Features
- Delivers modern radio reception with FM RDS plus digital DAB+ in a standard 1-DIN format
- Built-in amplifier with 4 x 41 W max music power and selectable sound presets (Classic, Pop, Rock, Jazz)
- Bluetooth hands-free calling and audio streaming for safer, cleaner in-cabin connectivity
- Rear USB host for media playback plus device charging up to 2.1 A
- Supports wired and wireless CarPlay and Android Auto for smartphone-based navigation and apps
- Camera input supports AHD, PAL, and NTSC video formats
Retail Package
- CRD8612UBA CANBus DAB car radio (12V)
- USB cable
- Frame trim
- Metal mounting sleeve
- Radio antenna adapter
- Radio removal tool
-
