The VDO 232-011-017-017D temperature switch is a precision threshold sensor for engine monitoring and temperature control, closing its contact at 85°C ± 3°C to trigger alarms, relays, or control circuits. Designed for VDO engine monitoring systems across automotive, marine, and industrial use, it combines an M14 x 1.5 thread for secure installation with a single-pole common-ground signal, slow response behavior, and 6–24 V DC operation for dependable performance in demanding environments.
- Description
- Ask a Question
-

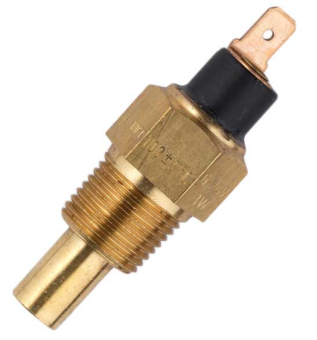

VDO Temperature Threshold Switch 85°C, M14 x 1.5
The VDO 232-011-017-017D is a temperature switch designed to support reliable engine monitoring and temperature control. It is built to detect a defined thermal limit and closes the contact as temperature rises, switching at 85°C ± 3°C for consistent threshold-based control in automotive, marine, and industrial systems.
Compatibility
- VDO Engine Monitoring Systems
- Automotive Applications
- Marine Applications
- Industrial Applications
Product Details
- Brand: VDO
- Part Number: 232-011-017-017D
- Component Type: Temperature Switch
- Signal Type: Single-pole common ground
- Switch Function: Contact closes when temperature exceeds 85°C
- Connector: AMP Male (6.3 x 0.8 mm)
- Country of Origin: Czech Republic
- Packaging: VDO Sensor retail package
Features
- Accurate temperature limit switching for alarms and control circuits
- M14 x 1.5 thread supports secure installation in housings, coolant circuits, and engine components
- Slow contact response supports stable switching behavior around the setpoint
- Designed for common-ground systems used in many monitoring and protection installations
Technical Specifications
Temperature Switchpoint 85°C ± 3°C Maximum Operating Temperature 120°C Thread M14 x 1.5 Male Switch Element Length + Thread 29 mm Sensor Diameter 10 mm Operating Voltage 6 - 24 V DC Switching Capacity Maximum 1.2 - 3 Watt (non-inductive) Contact Response Slow Type of Connection Model: A EAN Code 4103590689177 Weight 0.11 kg Catalog Reference VDO 2014 Vehicle Electronics Catalog, Page 148 - 150 -
