The VDO 232-011-017-038D thermal switching sensor is a 55°C temperature switch for engine monitoring systems, designed to close its contact as temperature rises past the threshold (55°C ± 3°C). Built for 6–24 V DC installations with single-pole common-ground signaling, it supports dependable control of temperature-critical circuits up to a maximum operating temperature of 120°C, and uses an M14 x 1.5 thread plus an AMP male 6.3 x 0.8 mm connector for secure mechanical and electrical fitment.
- Description
- Ask a Question
-
55°C Engine Monitoring Temperature Switch with M14 x 1.5 Thread

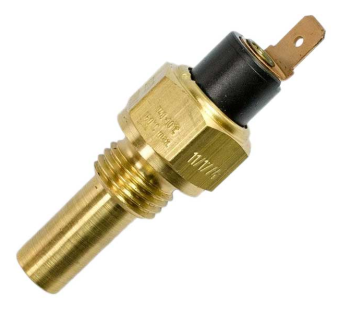

The VDO 232-011-017-038D is a temperature-activated switch designed for precise control in engine monitoring systems. It is set to switch at 55°C ± 3°C with a slow contact response, closing the electrical contact as temperature rises to help trigger warning devices or control circuits when a defined temperature threshold is reached.
Compatibility
- VDO engine monitoring systems
- Vehicles and machinery with 6–24 V DC electrical systems
- Installations requiring an M14 x 1.5 male threaded temperature switch
- Single-pole common-ground switching circuits
Technical Specifications
Part Number 232-011-017-038D Temperature Switchpoint 55°C ± 3°C Switch Function Contact closes when temperature > 55°C Maximum Operating Temperature 120°C Operating Voltage 6–24 V DC Switching Capacity Maximum 1.2–3 W (non-inductive) Signal Type Single-pole common ground Contact Response Slow Thread M14 x 1.5 male Switch Element Length + Thread (L) 29 mm Sensor Diameter 10 mm Connector AMP male 6.3 x 0.8 mm EAN Code 4103590689221 Country of Origin Czech Republic Packaging VDO sensor retail package
Product Details
- Brand: VDO
- Category: Temperature switches
- Component Type: Temperature switch (contact-closing type)
- Connection Model: A
Features
- Activates at a defined threshold to support safe, consistent temperature control in engine monitoring circuits
- Slow contact response helps provide stable switching behavior for temperature-sensitive control strategies
- M14 x 1.5 male thread supports secure installation in compatible ports
- Single-pole common-ground output suits many warning-light, relay, and control input schemes
- AMP male 6.3 x 0.8 mm connector enables a secure electrical connection
-
