ID
1369852
$ 92.86
1-2 weeks delivery time
-
+

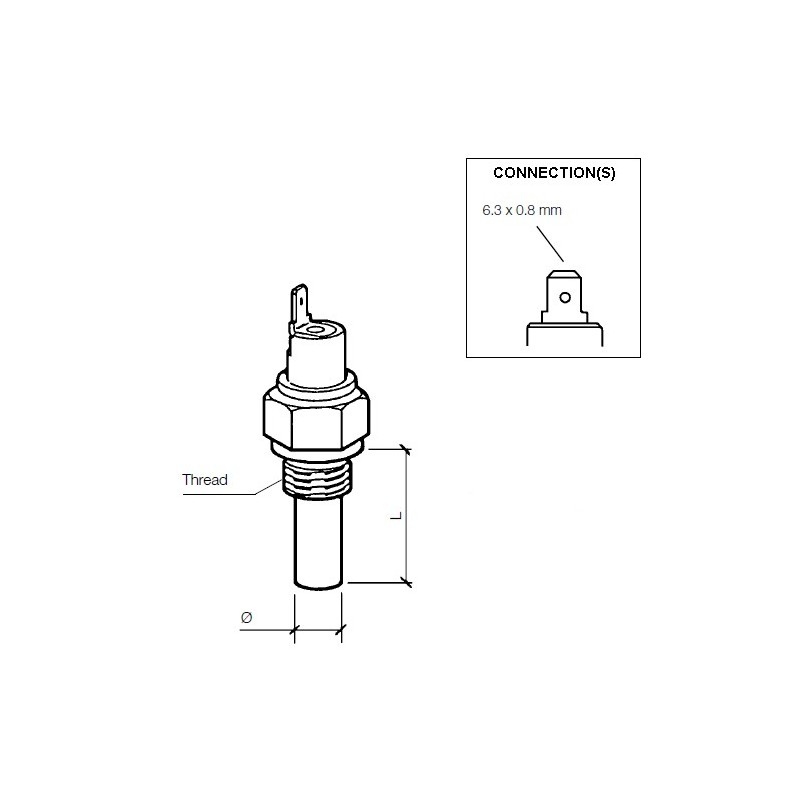

The VDO 232-011-017-016D thermal switch is a 95°C switching device (±3°C) for temperature-controlled circuits, closing its contact as temperature rises above 95°C for dependable fan, warning, or control activation. Built for 6–24 V DC systems, it uses a 1-pole common ground signal with a slow contact response and supports 1.2–3 W maximum switching capacity for non-inductive loads. An M14 x 1.5 threaded body (29 mm length, 10 mm sensor diameter) and AMP Male 6.3 x 0.8 mm connector make it a practical fit for compact installations requiring stable over-temperature switching up to 150°C.
- Description
- Ask a Question
-

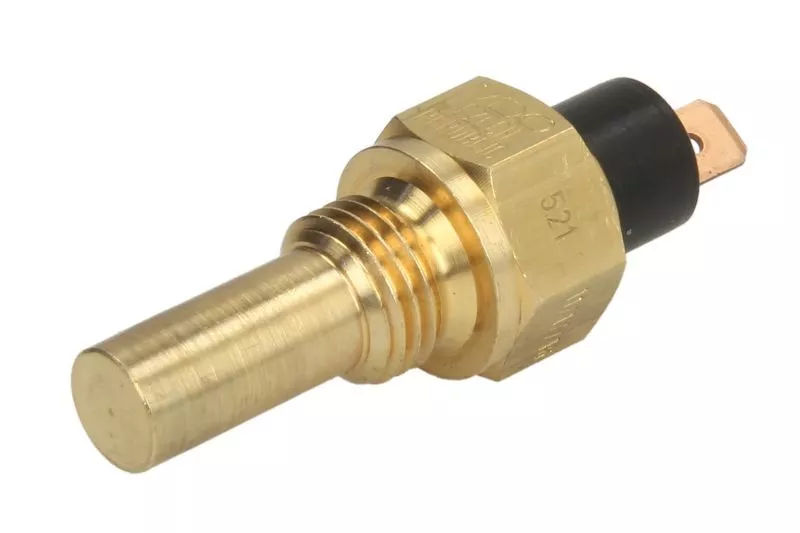

95°C Temperature-Activated Switch with M14 x 1.5 Thread
The VDO 232-011-017-016D is a temperature switch designed to close its contact when the measured temperature rises above 95°C. It is well suited for thermal protection and automatic control tasks such as triggering a warning circuit or switching an auxiliary device when a defined temperature threshold is reached. With 6–24 V DC operation, a 1-pole common ground signal, and a slow contact response, it delivers stable, consistent switching behavior in demanding environments.
Compatibility
- 6–24 V DC systems using a 1-pole common ground temperature switch signal
- Installations requiring an M14 x 1.5 threaded temperature switch
- Wiring setups using an AMP Male 6.3 x 0.8 mm connector
Technical Specifications
Brand VDO Part Number 232-011-017-016D Category Temperature switches Switchpoint 95°C ± 3°C Maximum Operating Temperature 150°C Switch Function Contact closes when temperature > 95°C Operating Voltage 6–24 V DC Signal Type 1-pole common ground Contact Response Slow Switching Capacity Maximum 1.2–3 W (non-inductive load) Thread M14 x 1.5 Switch Element Length Including Thread (L) 29 mm Sensor Diameter 10 mm Connector AMP Male 6.3 x 0.8 mm EAN Code 410359068916 Weight 0.04 kg Type of Connection Model A
Product Details
- Component Type: Temperature switch
- Primary Role: Provides an on/off switching signal at a defined temperature threshold
- Electrical Interface: Common-ground switching signal via AMP Male blade connector
Features
- Designed to activate control or warning circuits at a defined 95°C switchpoint
- Slow contact response helps provide stable switching behavior around the threshold
- M14 x 1.5 threaded fit supports secure installation in compatible ports
- Suitable for 6–24 V DC electrical systems with non-inductive loads up to 1.2–3 W maximum
-
