The VDO 232-011-017-040D temperature switch is a 1-pole common-ground control switch for automotive temperature management, set to close its contact as temperature rises above 70°C (±3°C). Built with an M14 x 1.5 male thread and an AMP male 6.3 x 0.8 mm connector, it supports reliable fan or warning-circuit activation in 6–24 V DC systems while maintaining stable engine operating conditions.
- Description
- Ask a Question
-
70°C Temperature Control Switch with M14 x 1.5 Thread
The VDO 232-011-017-040D is an automotive temperature switch engineered to trigger a control or warning circuit when coolant temperature reaches the calibrated threshold. The switch closes its contact as temperature rises, activating at 70°C (±3°C) to support dependable temperature control strategies such as fan engagement or over-temperature indication.
Compatibility
- Automotive applications requiring a 70°C temperature switch with M14 x 1.5 thread
Technical Specifications

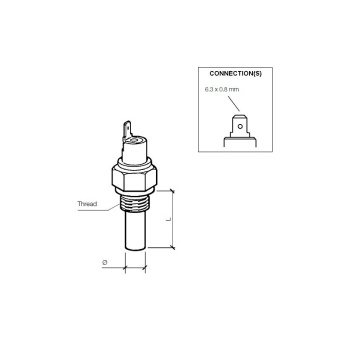

Part Number 232-011-017-040D Category Temperature switches Temperature Switchpoint 70 °C ± 3 °C Switch Function Contact closes when temperature > 70 °C Maximum Operating Temperature 120 °C Operating Voltage 6 - 24 V DC Sensor Signal Single-pole common ground Switching Capacity Maximum 1.2 - 3 Watt non-inductive Thread M14 x 1.5 male Switch Element Length Plus Thread (L) 29 mm Sensor Diameter 10 mm Connector AMP male 6.3 x 0.8 mm Type of Connection Model: A Analogue Signal Contact closes at limiting value Contact Response Slow EAN Code 4103590689245 Weight 0.04 kg Packaging VDO Sensor retail package
Product Details
- Brand: VDO
- Component Type: Temperature switch
- Electrical System: 6–24 V DC, common ground switching signal
Features
- Calibrated switchpoint designed to support stable engine temperature control at 70°C
- Contact-closing behavior as temperature rises enables straightforward fan, relay, or warning-light triggering
- M14 x 1.5 male thread helps ensure secure, service-friendly installation
- AMP male connector format supports robust electrical connection in vehicle environments
-
