The Lowrance Eagle 5 is a compact 5" IPS fishfinder/chartplotter with Autotuning Sonar support and FishReveal compatibility. It works with TripleShot™, SplitShot™, 50/200, and 83/200 HDI transducers and comes with a worldwide basemap, with an option for C-MAP® DISCOVER™ upgrades. The display offers 800 x 480 resolution, 1000 nits brightness, and wide 80° viewing angles. It runs on 12 V DC, consumes 190–280 mA, and has a recommended 3 A fuse. Built for durability, it operates from -15°C to 55°C, is IPX7 waterproof, and weighs 0.46 kg with gimbal or dash mounting options.
- Description
- Ask a Question
-

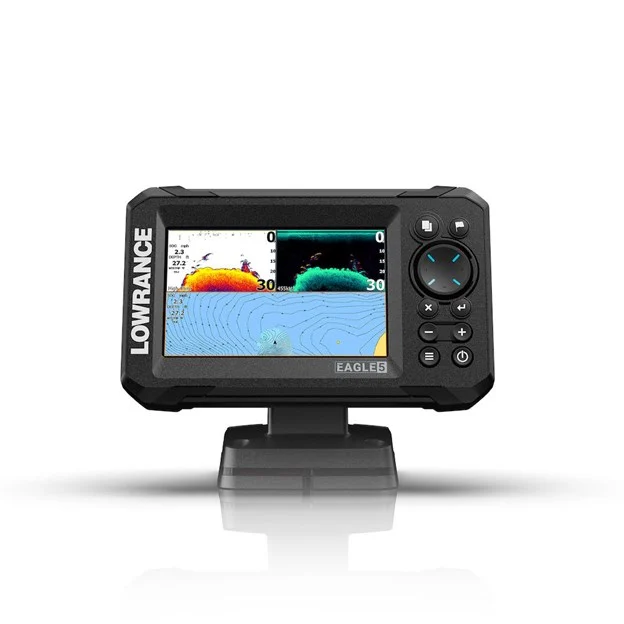

Lowrance 000-16236-001 – Eagle 5 Without Transducer
Compact IPS fishfinder/chartplotter with Autotuning Sonar support and FishReveal compatibility. Works with TripleShot™ HD, SplitShot™ HD, 50/200 and 83/200 HDI transducers. Supplied with worldwide basemap and C-MAP® DISCOVER™ upgrade option.
Display
Screen size 5" Resolution 800 x 480 Backlight Pure white LED Brightness 1000 nits Viewing angles 80° top/bottom, 80° left/right
Electrical
Supply voltage 12 V DC (10.8–17 V) Power consumption max 280 mA @ 12 V Power consumption min 190 mA @ 12 V Typical consumption 280 mA @ 12 V Recommended fuse 3 A
Navigation & Environment
GPS correction SBAS Time to first fix 45 s Operating temperature -15°C to 55°C Storage temperature -20°C to 60°C Humidity 95% RH at 60°C (48 h) Waterproof rating IPX7 (card door closed)
Physical
Dimensions (W x H x D) 182.1 x 113.2 x 110.6 mm Mounting Gimbal bracket or dash mount Weight 0.46 kg Compass safe distance 300 mm
p>Brand: Lowrance
-
