ID
1341400
$ 2,966.95
1-2 weeks delivery time
-
+
The Lowrance Elite FS 10 with Active Imaging 3-in-1 combines advanced fishfinding, live sonar readiness, and flexible charting on a 10-inch multi-touch display. It supports ActiveTarget™ 2, Active Imaging 3-in-1 and HD, FishReveal™, worldwide basemaps, and integration with Recon and Ghost trolling motors, plus Power Pole anchors, via wireless and NMEA 2000/Ethernet.
- Description
- Ask a Question
-

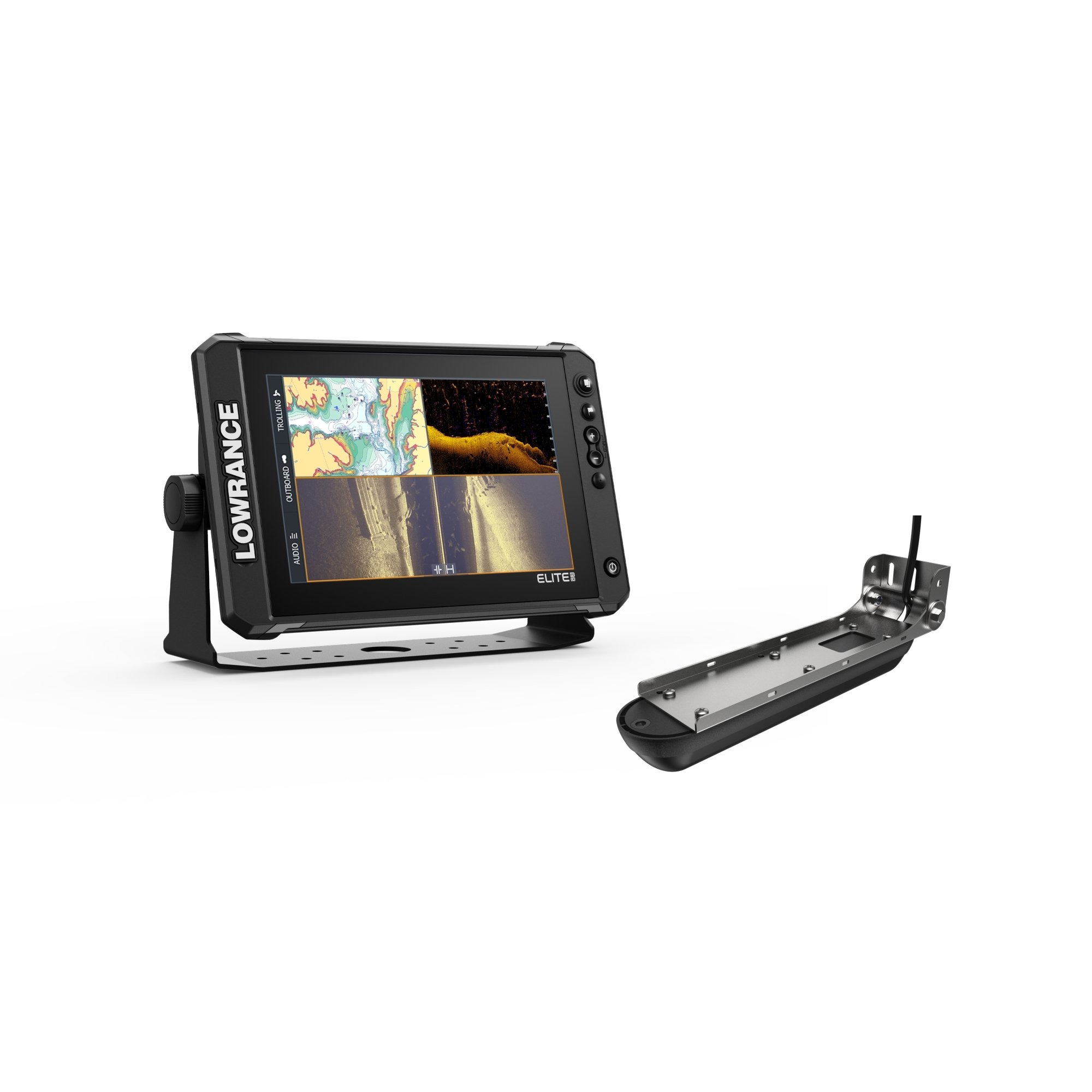

Lowrance 000-16438-001 - Elite FS 10 With Active Imaging 3-In-1
The Lowrance Elite Fishing System (FS) is built to help you get more from every trip on the water, bringing together advanced fishfinding features, live sonar readiness, and flexible charting options. This 10-inch model is ready for ActiveTarget™ 2 Live Sonar and supports Active Imaging™ 3-in-1, with the option to run Active Imaging™ HD 3-in-1 when paired with an S3100 Sonar Module. A high-resolution multi-touch touchscreen, strong wireless networking, and NMEA 2000®/Ethernet integration make it a powerful hub for sonar, navigation, and on-board connectivity.
Key Features
- ActiveTarget™ 2 Live Sonar ready
- Active Imaging 3-in-1 ready
- Active Imaging HD 3-in-1 ready with a S3100 Sonar Module
- FishReveal™
- Preloaded worldwide basemap with mapping options including C-MAP, Navionics® and more
- C-MAP® Easy Routing, Navionics® Autorouting™ capability
- C-MAP Genesis Live onscreen mapping
- High-resolution multi-touch touchscreen
- Integrated wireless, NMEA 2000® and Ethernet connectivity
- Full touchscreen control of Recon™ and Ghost® Trolling Motor, as well as Power Pole® Anchors
Technical Data
Display
Backlight Color Pure White LED Display Resolution 1280x800 Display Size 10 inches Screen Brightness >1200 nits Viewing Angles 85° top/bottom85° left/right
Connectivity
Bluetooth Integrated Bluetooth 4.0 with support for Bluetooth Classic Ethernet Ports 1 x 100Mbit Connectivity Wi Fi Internal 802.11b/g/n NMEA 0183 Sentences supported None NMEA 2000 Connectivity 1x Micro-C PC Connectivity None SD Card Storage 1 micro SD card up to 32GB Video None
Cartography
Charts supported C-MAP (MAX N, MAX N+), C-MAP Genesis, C-MAP Precision Contour HD (AMER ONLY), Navionics (Gold, NAV+ Platinum+), Insight (Pro and HD), Lowrance Regional Mapping Partners
Electrical
Power Consumption max 2.5A @ 13.8VDC with backlight on full Power Consumption min 28 W 2.0A @ 13.8VDC with backlight on full Power Consumption typical 2.0A @ 13.8VDC with backlight on full Recommended Fuse Rating 3A Supply Voltage 12v DC (10.8-17VDC)
Environment
Humidity 60°C, 95% relative humidity (RH) for 18 hours Operating Temperature Range 5°F to 131°F (-15°C to 55°C ) Shock Vibration 100,000 cycles of 20 G Storage Temperature Range 4°F to 140°F (-20°C to 60°C ) Waterproofrating IPX7 with card door closed
GPS
Correction DGPSWAASMSASEGNOSGLONASS GPS Receiver Channels 16 Position Accuracy 20m RMS Time to First Fix 30s Update rate 10 Hz
Brand: Lowrance
Code: 000-16438-001 -
