ID
1341399
$ 2,705
1-2 weeks delivery time
-
+
The Lowrance Elite FS 10 fishfinder (no transducer) features a high-resolution 10-inch touchscreen, ready for ActiveTarget™ 2 Live Sonar and Active Imaging options. It includes FishReveal™, preloaded worldwide basemaps, wireless, NMEA 2000, and Ethernet connectivity, and supports full control of Recon and Ghost trolling motors and Power Pole anchors.
- Description
- Ask a Question
-

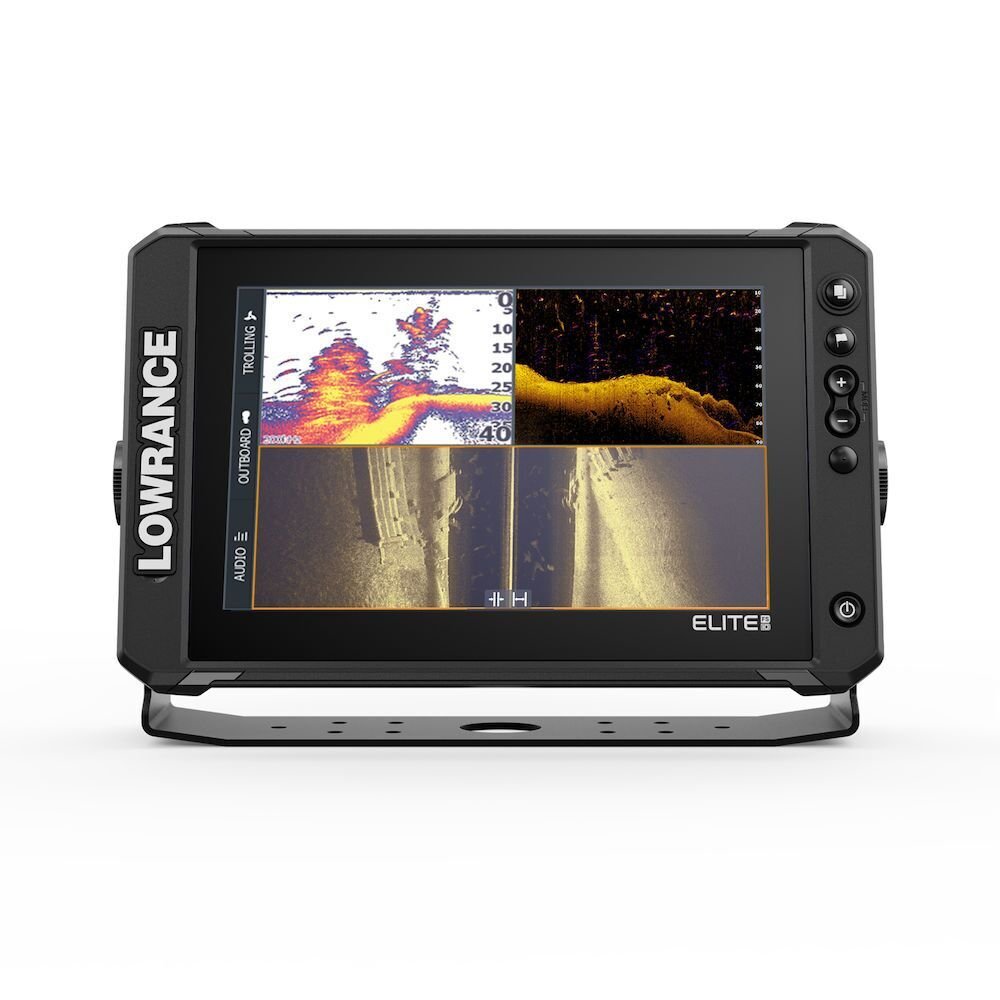

Lowrance 000-16437-001 - Fishfinder Elite FS 10, No Transducer
The Lowrance Elite Fishing System (FS) brings a complete set of fishfinding and navigation tools to your helm, built around a high-resolution 10-inch multi-touch display. It is ready for ActiveTarget 2 live sonar, supports Active Imaging options, and includes a preloaded worldwide basemap with upgrade options. Integrated wireless, NMEA 2000, and Ethernet connectivity enable broad system integration, including full touchscreen control of Recon and Ghost trolling motors and Power Pole anchors.
Key Features
- ActiveTarget 2 Live Sonar ready
- Active Imaging 3-in-1 ready
- Active Imaging HD 3-in-1 ready with a S3100 Sonar Module (Active Imaging HD requires S3100 Module)
- FishReveal
- Preloaded worldwide basemap with mapping options including C-MAP, Navionics and more
- C-MAP Easy Routing, Navionics Autorouting capability
- C-MAP Genesis Live onscreen mapping
- High-resolution multi-touch touchscreen
- Integrated wireless, NMEA 2000 and Ethernet connectivity
- Full touchscreen control of Recon and Ghost trolling motor, as well as Power Pole anchors
Display
Backlight Color Pure White LED Display Resolution 1280x800 Display Size 10 inches Screen Brightness >1200 nits Viewing Angles 85° top/bottom 85° left/right
Connectivity
Bluetooth Integrated Bluetooth 4.0 with support for Bluetooth Classic Ethernet Ports 1 x 100Mbit Wi-Fi Internal 802.11b/g/n NMEA 0183 Sentences Supported None NMEA 2000 Connectivity 1x Micro-C PC Connectivity None SD Card Storage 1 micro SD card up to 32GB Video None
Cartography
Charts Supported C-MAP (MAX N, MAX N+), C-MAP Genesis, C-MAP Precision Contour HD (AMER ONLY), Navionics (Gold, NAV+ Platinum+), Insight (Pro and HD), Lowrance Regional Mapping Partners
Electrical
Power Consumption Max 2.5A @ 13.8VDC with backlight on full Power Consumption Min 28 W 2.0A @ 13.8VDC with backlight on full Power Consumption Typical 2.0A @ 13.8VDC with backlight on full Recommended Fuse Rating 3A Supply Voltage 12v DC (10.8-17VDC)
Environment
Humidity 60°C, 95% relative humidity (RH) for 18 hours Operating Temperature Range 5°F to 131°F (-15°C to 55°C) Shock Vibration 100,000 cycles of 20 G Storage Temperature Range 4°F to 140°F (-20°C to 60°C) Waterproof Rating IPX7 with card door closed
GPS
Correction DGPS WAAS MSAS EGNOS GLONASS GPS Receiver Channels 16 Position Accuracy 20m RMS Time To First Fix 30s Update Rate 10 Hz
Brand: Lowrance
Code: 000-16437-001 -
