ID
1395482
$ 540.93
1-2 weeks delivery time
-
+
Icom IC-M330GE compact fixed marine VHF radio with integrated GPS/GLONASS/SBAS receiver, Class D DSC and 25/1 W transmit power. The radio features IPX7 waterproof protection, a high-visibility display, 4.5 W speaker, AquaQuake water-clearing function, NMEA 0183 connectivity, Dual / Tri-Watch and direct access to Channel 16. It operates from a 12 V marine electrical system and measures 156.5 × 66.5 × 110.1 mm. Supplied with microphone, power cable, mounting bracket and manual.
- Description
- Ask a Question
-

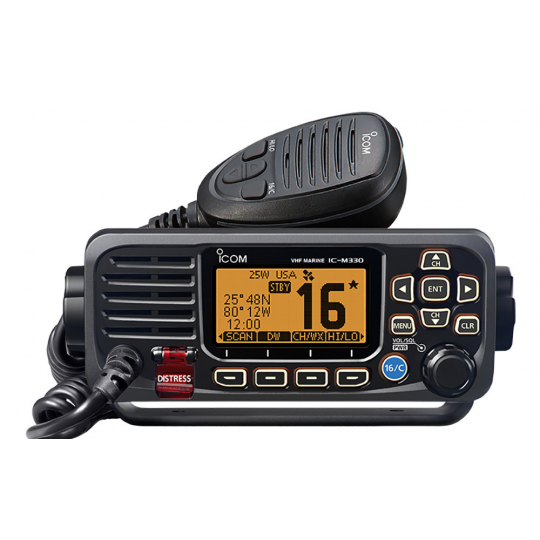

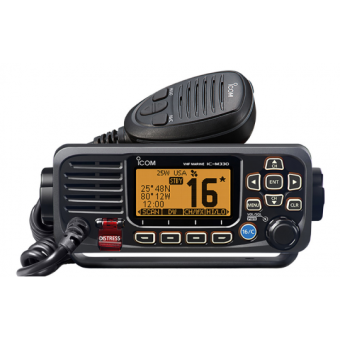

Icom IC-M330GE – Fixed Marine VHF Radio with GPS, Class D DSC & IPX7
The Icom IC-M330GE is a compact fixed marine VHF transceiver designed for reliable onboard communication. It combines 25 W transmit power, Class D DSC, integrated GPS functionality and IPX7 waterproof protection in a compact housing measuring 156.5 x 66.5 x 110.1 mm.
The IC-M330GE features a high-visibility display, backlit keypad and a powerful 4.5 W speaker for clear audio. The AquaQuake function removes water from the speaker grille, while NMEA 0183 connectivity allows communication with compatible marine navigation equipment.
Technical Specifications
Brand Icom Model IC-M330GE Product Type Fixed Marine VHF Radio Color Black Frequency Range 156-163 MHz Transmit Power 25 W / 1 W DSC Class D GPS Yes GNSS GPS / GLONASS / SBAS Waterproof Rating IPX7 – immersion to 1 m for 30 minutes Speaker 4.5 W Power Supply 13.8 V DC nominal (10.8-15.6 V DC) Maximum Current – Transmit 5 A Maximum Current – Receive 1 A Operating Temperature -20°C to +60°C Dimensions (W x H x D) 156.5 x 66.5 x 110.1 mm Weight 730 g Regulation EN 301 025 V2.2.1
GPS and NMEA Connectivity
- Integrated GPS / GLONASS / SBAS receiver
- External GPS antenna included
- NMEA 0183 serial communication interface
- Compatible with external GPS and navigation equipment
- NMEA input: RMC, GGA, GNS, GLL, VTG
- NMEA output: DSC, DSE, RMC, GSA, GSV
Communication Features
- Class D DSC functionality when programmed with MMSI
- 25 W / 1 W transmit power selection
- Immediate access to Channel 16
- Dual / Tri-Watch functionality
- Channel 16 and call channel monitoring
- Priority scan
- Tag scan and favorite channel functions
- Selectable 3- or 4-digit channel display
Audio and Display Features
- 4.5 W speaker for clear marine communication
- AquaQuake function for clearing water from the speaker
- High-visibility display
- Backlit display and keypad
- External speaker output
Supplied Equipment
- Hand microphone
- Power cable
- Mounting bracket
- External GPS antenna
- User manual
Product Identifiers
- Icom Product Number: IC-M330GE#75
- Forniture Nautiche Italiane: 5550332
- VDM-Reya SKU: SEICM330GE
- Item: 497475
- EAN: 4909723140887
Optional Accessory: Bulkhead mounting bracket, FNI article 5550133.
-
