ID
1395494
$ 453.23
1-2 weeks delivery time
-
+
Icom HM-195B CommandMic remote-control microphone for compatible Icom marine VHF transceivers, including IC-M423/G, IC-M506 and IC-M400BB. It provides remote access to radio functions including volume, squelch, distress call, DSC and PA, and can also operate as an intercom. The HM-195B features IPX7 submersible protection, a large 45 mm speaker, DSC distress button, -20°C to +60°C operating temperature and 2.0 W typical audio output. Supplied with a 6.1 m OPC-1540 connection cable; installation can be extended up to 18.3 m using optional OPC-1541 extension cables. Black version.
- Description
- Ask a Question
-

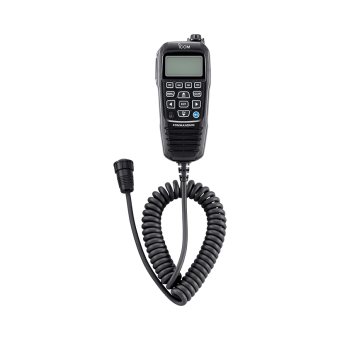

Icom HM-195B CommandMic – Remote Control Microphone for IC-M423/G, IC-M506 & IC-M400BB
The Icom HM-195B CommandMic is a remote-control microphone designed for compatible Icom marine VHF transceivers. It allows the radio to be controlled from a separate cabin, tower or other remote position and provides an interface similar to that used on Icom marine radios.
The CommandMic provides control of volume, squelch, distress call, DSC and PA functions and can also be used as an intercom. Its IPX7 submersible construction is designed for marine environments, while the large 45 mm speaker provides clear audio output.
Compatible Icom Marine Radios
- IC-M423/G
- IC-M506
- IC-M400BB
Technical Specifications
Brand Icom Model HM-195B Product Type CommandMic Remote Control Microphone Color Black Waterproof Rating IPX7 – submersible to 1 m for 30 minutes Speaker Diameter 45 mm Audio Output 2.0 W typ. at 10% distortion, 4 Ω Operating Temperature -20°C to +60°C Curled Cable Length 560 mm (22.0 in) Supplied Connection Cable OPC-1540, 6.1 m (20 ft) Maximum Remote Installation Distance 18.3 m (60 ft)
Control and Communication Functions
- Remote control of compatible Icom marine transceivers
- Volume control
- Squelch control
- Distress call control
- DSC function control
- PA function control
- Intercom function
- DSC Distress button on the rear of the unit
Supplied Accessories
- OPC-1540 6.1 m (20 ft) connection cable with external speaker terminal
- Mounting bracket
- Microphone hanger
Optional Extension
The optional OPC-1541 extension cable adds 6.1 m to the installation distance. Up to two OPC-1541 extension cables can be connected for a maximum remote installation distance of 18.3 m (60 ft).
Key Features
- Common Icom marine radio user interface
- IPX7 submersible protection
- Full Class D DSC control capability
- Large 45 mm speaker
- Remote installation up to 18.3 m from the radio
- Designed for marine remote-control and intercom applications
-
