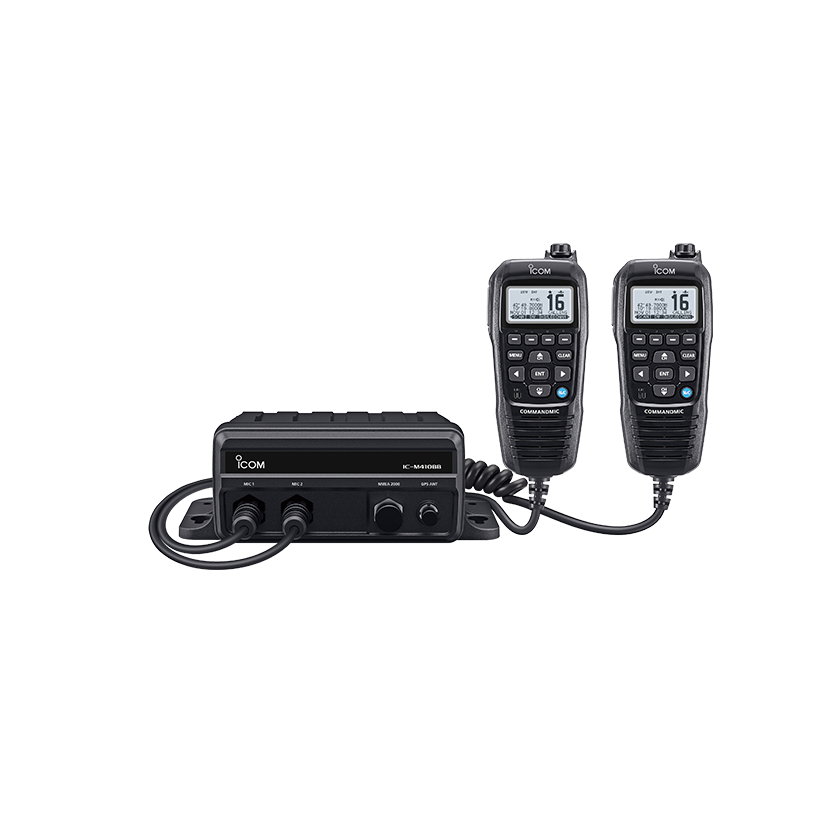

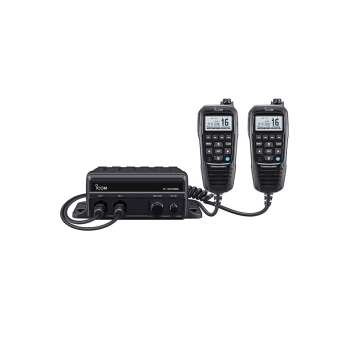

Icom IC-M410BB Black Box Marine VHF with Integrated GPS, NMEA 2000 & Class D DSC

ID 1395485

$ 1,518

1-2 weeks delivery time

- +

Add to cart

Icom IC-M410BB black box marine VHF radio designed for installations with limited helm space. The system supports up to two CommandMic HM-195 stations, allowing full radio and DSC control from locations up to 18.3 m from the concealed RF unit. It features integrated GPS, Class D DSC, NMEA 2000 and NMEA 0183-HS connectivity, active noise cancelling, IPX7 waterproof protection, AquaQuake, Anchor Watch and a built-in 15 W amplifier for an optional external hailer speaker.

Description
Ask a Question

Icom IC-M410BB – Black Box Marine VHF with Integrated GPS, NMEA 2000 & Class D DSC

The Icom IC-M410BB is a black box marine VHF radio designed for clean, space-saving installations where the main RF unit can be mounted out of sight. Radio operation, including DSC functions, is controlled from the connected CommandMic HM-195 stations.

Up to two CommandMic stations can be installed, providing access to VHF radio and intercom functions from different positions on board. The CommandMic can be located up to 18.3 m (60 ft) from the black box unit.

System and Installation Features
- Black box configuration for limited helm space
- Supports up to two CommandMic HM-195 stations
- Full radio and DSC control from the CommandMic
- Maximum remote installation distance: 18.3 m (60 ft)
- Intercom functionality between stations
- External speaker connection from the CommandMic cable
DSC and Communication Features
- Built-in Class D DSC
- Dedicated DSC Channel 70 watch function
- Distress call functionality
- Digital transmission of distress information
- VHF radio control from remote CommandMic stations
Navigation and Data Integration

Integrated GPS Receiver Yes

NMEA 2000 Yes

NMEA 0183-HS Yes

The NMEA 2000 interface provides plug-and-play data communication with compatible marine electronics. The radio can transmit GNSS position, DSC call information and radio channel data to compatible onboard equipment.

Audio Features
- Active Noise Cancelling for transmit and receive audio
- Built-in 15 W amplifier for optional external hailer speaker
- One-way RX hailer function
- Foghorn patterns through an external hailer speaker
- AquaQuake water-clearing function
Marine Features
- IPX7 waterproof protection – 1 m depth for 30 minutes
- Integrated GPS receiver
- Anchor Watch function
- Designed for concealed black box installation
Optional Equipment
- Second CommandMic HM-195 station
- SP-37 external hailer speaker
Note: An external GPS antenna is included with the European version and optional with the USA version.
