Icom MA-510TR Class B AIS transponder with 2 W output, integrated GPS navigation function and supplied GPS antenna. It receives both Class A and Class B AIS signals and displays vessel traffic on a 4.3" color TFT LCD with day and night modes. The unit supports NMEA 2000 and NMEA 0183/-HS connectivity, navigation to up to 100 stored waypoints or AIS targets, Silent Mode, collision and anchor watch alarms, MOB signal handling and individual DSC calling when connected to a compatible Icom VHF.
- Description
- Ask a Question
-

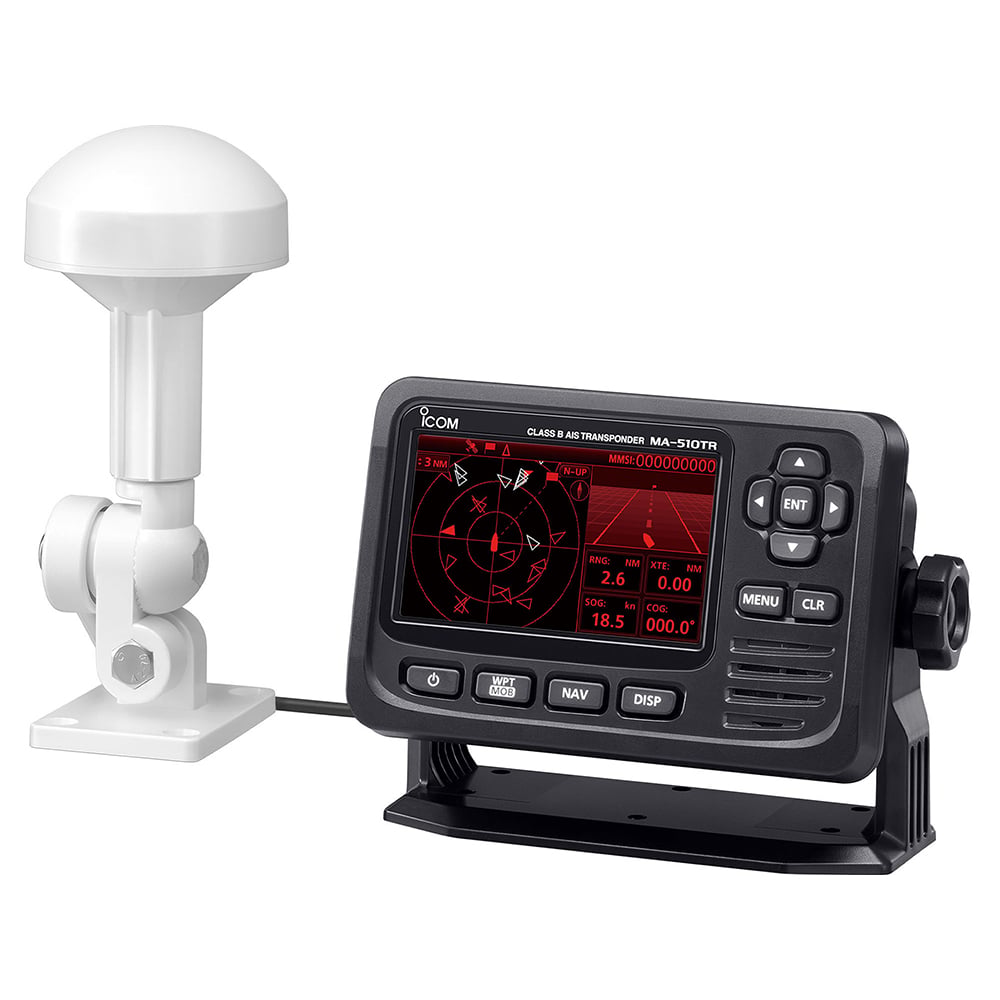

Icom MA-510TR – Class B AIS Transponder with GPS Antenna, NMEA 2000 & 4.3" Color Display
The Icom MA-510TR is a Class B AIS transponder designed to transmit vessel information while receiving both Class A and Class B AIS signals. It combines AIS traffic monitoring with GPS navigation and marine network connectivity in a single unit.
A 4.3-inch color TFT LCD provides a wide viewing angle and displays nearby vessel traffic together with navigation information. Vessels within the configured CPA and TCPA ranges can be organized into danger or friend lists, while dedicated day and night display modes provide suitable visibility in different lighting conditions.
Technical Specifications
Brand Icom Model MA-510TR Product Type Class B AIS Transponder AIS Reception Class A and Class B AIS signals Output Power 2 W Display 4.3" Color TFT LCD GPS Navigation Integrated navigation function GPS Antenna Supplied NMEA Connectivity NMEA 2000, NMEA 0183/-HS Waterproof Rating IPX7 Power Compatibility 12 V / 24 V
AIS Traffic Display
- Receives both Class A and Class B AIS signals
- Real-time AIS vessel traffic display
- 4.3" color TFT LCD with wide viewing angle
- Potential collision vessels can be displayed in red
- Registered friend vessels can be displayed in yellow
- Vessels within 6 NM CPA and 60 minutes TCPA can be placed into respective danger or friend lists
- Day mode for visibility in direct sunlight
- Night mode for comfortable low-light viewing
GPS Navigation Functions
- Built-in GPS navigation function
- Navigation to stored waypoints
- Navigation directly to AIS targets
- Up to 100 destinations or fishing spots can be stored
Safety Functions
- Collision alarm based on CPA and TCPA ranges
- Visual vessel warning on the display
- Warning sound when connected to external audio equipment
- Anchor Watch alarm for detecting vessel movement while anchored
- Received Man Overboard signals can be set as navigation destinations
Silent Mode
The Silent Mode function temporarily switches off AIS transmission while AIS signals from other vessels continue to be received. This allows the MA-510TR to continue monitoring surrounding AIS traffic without transmitting the vessel's position.
NMEA Connectivity
- NMEA 2000 connectivity
- NMEA 0183/-HS connectivity
- Connection to compatible external chartplotters
- Connection to marine radar
- Connection to compatible VHF radios
- Connection to external GPS receivers
Additional Features
- Individual DSC Call with a compatible Icom VHF using an accessory cable
- USB connectivity
- Multi-language user interface
- 12 V and 24 V power compatibility
- IPX7 waterproof protection
-
