ID
1224572
$ 59.52
1-2 weeks delivery time
-
+
The BEP 777-Z18W-200-B is a Pro Installer Z Bus Bar with cover (18-way) designed for compact cable termination and optimized cable routing in marine electrical installations. It features 4 × 6 mm (1/4") studs treated with anti-seize lubricant and 18 screw terminals (4 mm / 5/32") with captive lock washers. Rated for 200A maximum per bar (2 × 200A) and 50V DC, it uses tinned CDA102 copper conductors plus stainless steel studs, washers, and nuts for long service life in harsh marine environments and is built with metric threads. This model is listed with OEM reference 777-Z18W-200-B and has a 1.5× footprint.
- Description
- Ask a Question
-

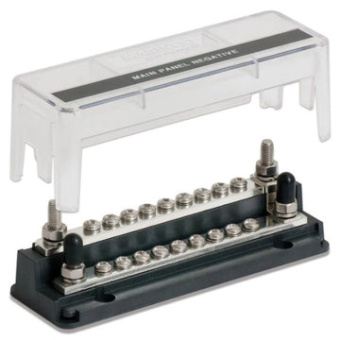

BEP 777-Z18W-200-B – Pro Installer Z Bus Bar with Cover, 18-Way, 18 Screw Terminals, 4 × 6 mm (1/4") Studs, 4 mm (5/32") Terminals, 2 × 200A, 50V DC
The BEP 777-Z18W-200-B is a Pro Installer Z Bus Bar with cover (18-way) designed for small cable termination using the Z-Bar concept. This design maximizes power density by utilizing high and low level bars to optimize cable runs and save installation space.
Key Features
- Z-Bar concept for optimized cable routing and improved power density
- 18-way configuration for compact multi-cable termination
- Protective cover included (as specified in the product name)
- Stainless steel hardware for longevity in marine environments
- Tinned CDA102 copper conductors for reliable electrical conductivity
- Metric threads for compatibility with common marine electrical installations
Electrical Ratings
- Maximum current per bar: 200A (2 × 200A)
- Voltage rating: 50V DC
Connection / Hardware Specifications
Main Studs 4 × 6 mm (1/4") studs (treated with anti-seize lubricant) Screw Terminals 18 × 4 mm (5/32") terminals with captive lock washers
Model Reference
Description 18-way, Z Bus Bar Part Number 777-Z18W-200-B OEM Reference 777-Z18W-200-B Footprint 1.5× -
