ID
823892
$ 61.71
1-2 weeks delivery time
-
+
The BEP 777-Z18W-200 is a Pro Installer Z Bus Bar (18-way) designed for small cable termination where optimized cable routing and maximum power density are required. It features 4 × 6 mm (1/4") studs with anti-seize lubricant, 4 mm (5/32") terminals with captive lock washers, and tinned CDA102 copper conductors for reliable conductivity. Rated for 200A maximum per bar (2 × 200A) and 50V DC, it uses stainless steel studs, washers, and nuts for long service life in marine environments and includes metric threads. This model is listed with OEM reference 777-Z18W-200-B and has a 1.5× footprint.
- Description
- Ask a Question
-

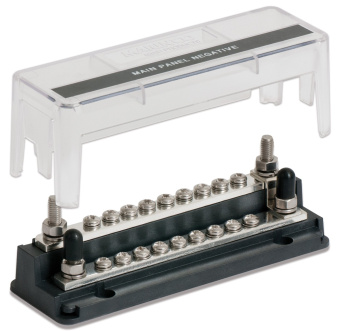

BEP 777-Z18W-200 – Pro Installer Z Bus Bar, 18-Way, 200A Max, 50V DC, 6 mm (1/4") Studs
The BEP 777-Z18W-200 is a Pro Installer Z Bus Bar (18-way) designed for small cable termination using the Z-Bar concept. This layout maximizes power density by utilizing high and low level bars to optimize cable runs and save installation space.
Key Features
- Z-Bar concept for optimized cable routing and improved power density
- 18-way configuration for compact multi-cable termination
- Stainless steel hardware for longevity in marine environments
- Tinned CDA102 copper conductors for reliable electrical conductivity
- Metric threads for compatibility with common marine electrical installations
Electrical Ratings
- Maximum current per bar: 200A (2 × 200A)
- Voltage rating: 50V DC
Connection / Hardware Specifications
Main Studs 4 × 6 mm (1/4") studs (treated with anti-seize lubricant) Terminal Size 4 mm (5/32") terminals with captive lock washers
Model Reference
Description 18-way, Z Bus Bar Part Number 777-Z18W-200 OEM Reference 777-Z18W-200-B Footprint 1.5× -
