The BEP 777-Z10W-200-B is a Pro Installer Z Bus Bar with cover for compact cable termination and optimized cable routing in marine electrical installations. This 10-way Z Bus Bar includes 4 × 6 mm (1/4") studs treated with anti-seize lubricant and 10 screw terminals (4 mm / 5/32") with captive lock washers. It is rated for 200A maximum per bar (2 × 200A) and 50V DC, and is built with tinned CDA102 copper conductors plus stainless steel studs, washers, and nuts for long service life in harsh marine environments. The unit is listed with an OEM reference 777-Z10W-200-B and has a 1× footprint.
- Description
- Ask a Question
-

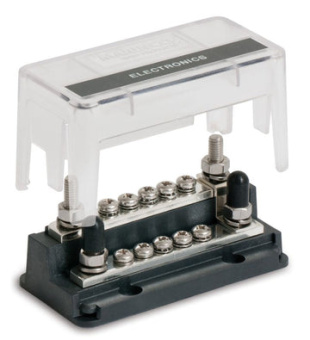

BEP 777-Z10W-200-B – Pro Installer Z Bus Bar with Cover, 10-Way, 10 Screw Terminals, 4 × 6 mm (1/4") Studs, 4 mm (5/32") Terminals, 2 × 200A, 50V DC

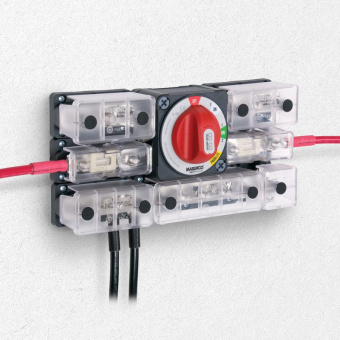

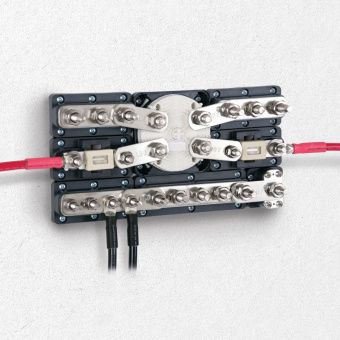

The BEP 777-Z10W-200-B is a Pro Installer Z Bus Bar with cover designed for small cable termination using the Z-Bar concept. This design maximizes power density by utilizing high and low level bars to optimize cable runs and save installation space.
Key Features
- Z-Bar concept for optimized cable routing and improved power density
- 10-way configuration for compact multi-cable termination
- Protective cover included (as specified in the product name)
- Stainless steel hardware for longevity in marine environments
- Tinned CDA102 copper conductors for reliable electrical conductivity
- Metric threads for compatibility with common marine electrical installations
Electrical Ratings
- Maximum current per bar: 200A (2 × 200A)
- Voltage rating: 50V DC
Connection / Hardware Specifications
Main Studs 4 × 6 mm (1/4") studs (treated with anti-seize lubricant) Screw Terminals 10 × 4 mm (5/32") terminals with captive lock washers
Model Reference
Description 10-way, Z Bus Bar Part Number 777-Z10W-200-B OEM Reference 777-Z10W-200-B Footprint 1× -
