ID
824158
$ 3,271.36
1-2 weeks delivery time
-
+
The BEP M32-DCSM is a Millennium Series DC branch circuit breaker panel with a built-in digital multifunction meter and 32 load positions, designed for 12V or 24V DC systems. It is supplied with single-pole circuit breakers in the following configuration: 7x 5A, 11x 10A, 11x 15A, 1x 20A, 1x 25A, and 1x 30A, and supports up to 160A per bus with a 24-way negative bus. The panel uses a compact format with a mounting depth of 2.5" (64 mm) and overall dimensions of 11.25" x 13.9" (285 x 351 mm).
- Description
- Ask a Question
-

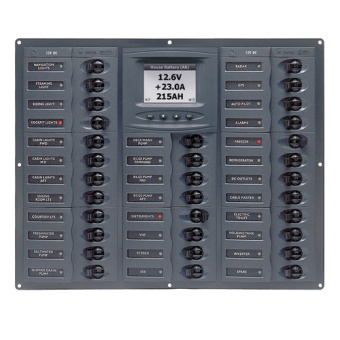

BEP M32-DCSM – Millennium Series DC Branch Circuit Breaker Panel, Digital Meter, 32 Loads, 12V/24V
The BEP M32-DCSM is a Millennium Series DC branch circuit breaker panel designed for compact DC power distribution and protected circuit management. It includes a digital multifunction meter for monitoring key electrical and battery system values and provides 32 load positions for organized circuit protection on board.
Key Features
- Series: Millennium Series DC Branch Circuit Breaker Panels
- Part Number: M32-DCSM
- Meter: Digital
- Total Positions: 32 Loads
- Nominal Voltage: 12V or 24V DC
- Maximum Amperage: 160A per bus
- Negative Bus: 24-way
- Mounting Depth (all panels): 2.5" (64 mm)
Battery Monitoring (Digital Multifunction Meter)
- Voltage monitoring on 3 battery banks
- Charge and discharge current monitoring
- Amp-hours remaining on the main battery bank
Included Circuit Breakers (Single Pole)
- 7x 5A
- 11x 10A
- 11x 15A
- 1x 20A
- 1x 25A
- 1x 30A
Dimensions
Parameter Value Panel Size (H x W) 11.25" x 13.9" Panel Size (H x W) 285 x 351 mm Mounting Depth 2.5" (64 mm)
Technical Specifications
Specification Details System Voltage 12V or 24V DC Total Load Positions 32 Breaker Type Single Pole Maximum Amperage 160A per bus Negative Bus 24-way Meter Type Digital
Label Sheet
- Label Sheet: 1–4, 6
-
