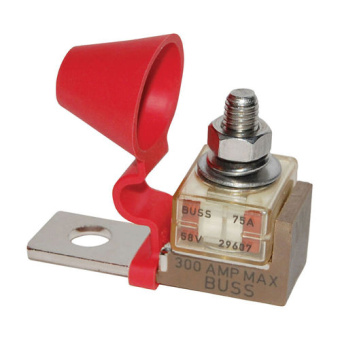

BEP MRBF – Marine Rated Battery Fuse Holder (Terminal Mount), IP66, 58V DC, for MRBF Fuses 30A–300A

ID 1077261

$ 54.67

1-2 weeks delivery time

- +

Add to cart

The BEP MRBF is a marine rated terminal-mount heavy-duty battery fuse holder supplied with a protective cover, designed for MRBF fuses from 30A to 300A with a maximum voltage rating of 58V DC. It features a weatherproof IP66 design, an insulated cap to prevent short circuits, and is ignition protected (per SAE J1117), making it suitable for high-capacity battery banks. The system supports an interrupt rating of 10,000A @ 14V DC, 5,000A @ 32V DC, and 2,000A @ 58V DC, with a maximum torque rating of 12 Nm (106 in-lbs).

Description
Ask a Question

BEP MRBF – Marine Rated Battery Fuse Holder (Terminal Mount), IP66, 58V DC, for MRBF Fuses 30A–300A

The BEP MRBF is a marine rated terminal mount heavy-duty battery fuse holder designed to provide compact, high-current circuit protection. It is supplied with a protective cover and is suitable for use in high-capacity battery bank installations where reliable and secure battery fuse protection is required.

Key Features

Weatherproof Design: IP66
Compact heavy-duty protection
Insulated cap to help prevent short circuits
Ignition Protected
Easy installation
Suitable for high capacity battery banks

Specifications

Specification	Value
Voltage Rating	58V DC Maximum
Amperage Rating	30A – 300A
Ingress Protection	IP66
Ignition Protected	Per SAE J1117
Interrupt Rating	10000A @ 14V DC, 5000A @ 32V DC, 2000A @ 58V DC
Torque Rating	Maximum 12Nm (106 in-lbs)
Material	Body – Ceramic, Housing & Cover: UL-rated 94V0 Thermoplastic, Ring Terminals: Tin Plated
Compliance	ISO 8820-6

Available MRBF Fuse Ratings and Part Numbers

Rating (A)	Qty / Package	Part #	OEM #
50	1	MRBF-50A	MRBF-50A-B
80	1	MRBF-80A	MRBF-80A-B
100	1	MRBF-100A	MRBF-100A-B
125	1	MRBF-125A	MRBF-125A-B
150	1	MRBF-150A	MRBF-150A-B
200	1	MRBF-200A	MRBF-200A-B
300	1	MRBF-300A	MRBF-300A-B

Notes

Available in other sizes upon request, from 30A to 300A.
