$ 4,553.71
1-2 weeks delivery time
-
+

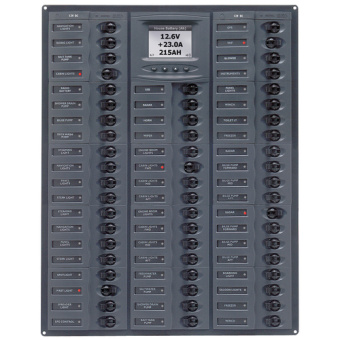

The BEP M56-DCSM is a Millennium Series DC branch circuit breaker panel with an integrated digital multifunction meter and 56 load positions, designed for 12V or 24V DC electrical systems. It is supplied with single-pole circuit breakers in the following configuration: 12x 5A, 18x 10A, 18x 15A, 4x 20A, 2x 25A, and 2x 30A, and supports up to 160A per bus with 2x 24-way negative buses. The panel has a mounting depth of 2.5" (64 mm) and overall dimensions of 18" x 13.9" (455 x 351 mm).
- Description
- Ask a Question
-
BEP M56-DCSM – Millennium Series DC Branch Circuit Breaker Panel, Digital Meter, 56 Loads, 12V/24V
The BEP M56-DCSM is a Millennium Series DC branch circuit breaker panel engineered for high-capacity DC power distribution and circuit protection. It includes a digital multifunction meter for battery monitoring and provides 56 load positions to manage multiple DC circuits in marine electrical systems.
Key Features
- Series: Millennium Series DC Branch Circuit Breaker Panels
- Part Number: M56-DCSM
- Meter: Digital
- Total Positions: 56 Loads
- Nominal Voltage: 12V or 24V DC
- Maximum Amperage: 160A per bus
- Negative Bus: 2x 24-way
- Mounting Depth (all panels): 2.5" (64 mm)
Battery Monitoring (Digital Multifunction Meter)
- Voltage monitoring on 3 battery banks
- Charge and discharge current monitoring
- Amp-hours remaining on the main battery bank
Included Circuit Breakers (Single Pole)
- 12x 5A
- 18x 10A
- 18x 15A
- 4x 20A
- 2x 25A
- 2x 30A
Dimensions
Parameter Value Panel Size (H x W) 18" x 13.9" Panel Size (H x W) 455 x 351 mm Mounting Depth 2.5" (64 mm)
Technical Specifications
Specification Details System Voltage 12V or 24V DC Total Load Positions 56 Breaker Type Single Pole Maximum Amperage 160A per bus Negative Bus 2x 24-way Meter Type Digital
Label Sheet
- Label Sheet: 1–4, 6
-
