ID
824157
$ 2,711.32
1-2 weeks delivery time
-
+

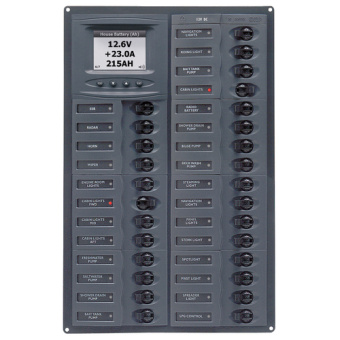

The BEP M28-DCSM is a Millennium Series DC branch circuit breaker panel with an integrated digital multifunction meter and 28 load positions, designed for 12V or 24V DC electrical systems. It is built with single-pole circuit breakers in the following configuration: 8x 5A, 8x 10A, 8x 15A, 2x 20A, and 2x 30A, and supports up to 160A per bus with a 24-way negative bus. The panel is designed in a compact format with a mounting depth of 2.5" (64 mm) and overall size 14.6" x 9.75" (370 x 239 mm).
- Description
- Ask a Question
-
BEP M28-DCSM – Millennium Series DC Branch Circuit Breaker Panel, Digital Meter, 28 Loads, 12V/24V
The BEP M28-DCSM is a Millennium Series DC branch circuit breaker panel designed for compact and organized distribution of DC power on board. It includes a digital multifunction meter for monitoring key battery and system values and provides 28 load positions for protected circuit management.
Key Features
- Series: Millennium Series DC Branch Circuit Breaker Panels
- Part Number: M28-DCSM
- Meter: Digital
- Total Positions: 28 Loads
- Nominal Voltage: 12V or 24V DC
- Maximum Amperage: 160A per bus
- Negative Bus: 24-way
- Mounting Depth (all panels): 2.5" (64 mm)
Battery Monitoring (Digital Multifunction Meter)
- Voltage monitoring on 3 battery banks
- Charge and discharge current monitoring
- Amp-hours remaining on the main battery bank
Included Circuit Breakers (Single Pole)
- 8x 5A
- 8x 10A
- 8x 15A
- 2x 20A
- 2x 30A
Dimensions
Parameter Value Panel Size (H x W) 14.6" x 9.75" Panel Size (H x W) 370 x 239 mm Mounting Depth 2.5" (64 mm)
Technical Specifications
Specification Details System Voltage 12V or 24V DC Total Load Positions 28 Breaker Type Single Pole Maximum Amperage 160A per bus Negative Bus 24-way Meter Type Digital
Label Sheet
- Label Sheet: 1–4
-
