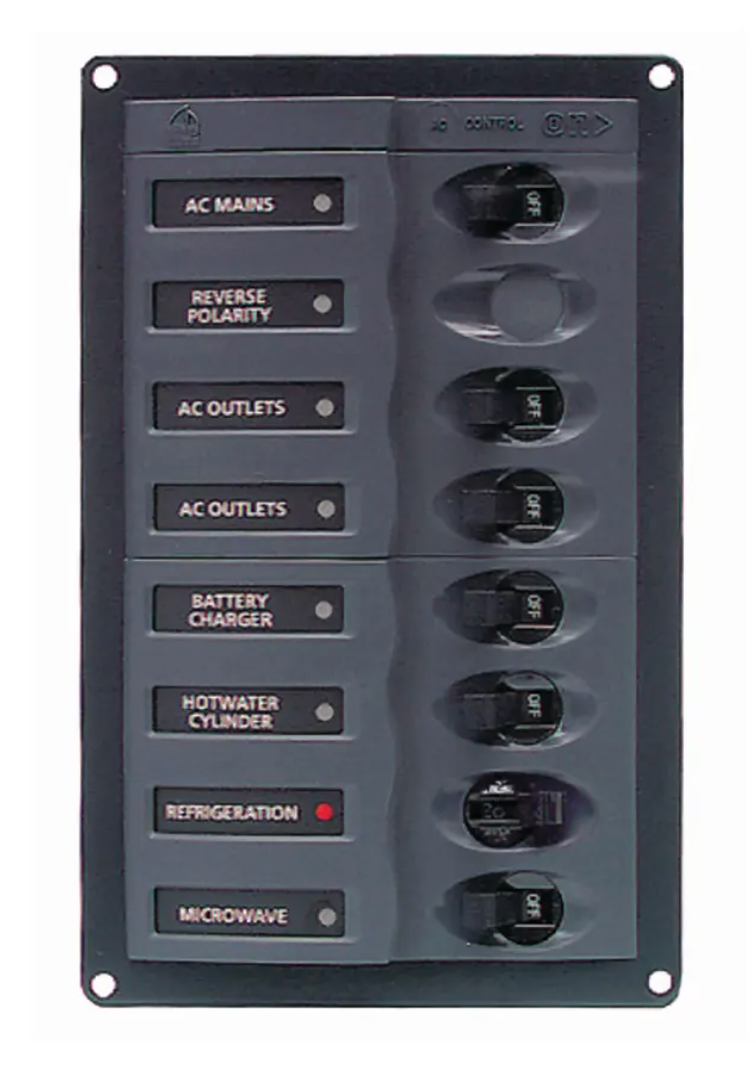

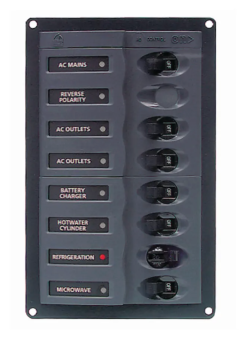

BEP 900-ACM6W-110V – AC Main Circuit Breaker Panel, 110V AC, 6 Loads + 1 Input, No Meter, Double Pole Mains, Vertical Mount

ID 1330821

$ 915.73

1-2 weeks delivery time

- +

Add to cart

The BEP 900-ACM6W-110V is an AC main circuit breaker panel without meters for 110V AC electrical systems, designed for AC shore power installations and on-board inverter installations. It provides 6 loads + 1 input and uses a breaker configuration of 3 x 15A, 2 x 20A, 1 x 25A + 1 x 30A, with a maximum amperage of 30A. The panel has a compact size of 7.9" x 5" (200 x 127 mm) and a mounting depth of 2.5" (64 mm), making it a practical solution for safe and organized AC power distribution.

Description
Ask a Question

BEP 900-ACM6W-110V – AC Main Circuit Breaker Panel, 110V AC, 6 Loads + 1 Input, No Meter, Double Pole Mains, Vertical Mount

The BEP 900-ACM6W-110V is an AC main circuit breaker panel without meters, designed for 110V AC electrical installations. It is ideal for AC shore power installations and on-board inverter installations, providing a compact and efficient layout for AC circuit protection and power distribution.

Key Features
- Part Number: 900-ACM6W-110V
- Nominal Voltage: 110V AC
- Meter: None
- Total Positions: 6 Loads + 1 Input
- Maximum Amperage: 30A
- Mounting Depth: 2.5" (64 mm)
Circuit Breaker Configuration
- Circuit Breakers (single + double pole): 3 x 15A, 2 x 20A, 1 x 25A + 1 x 30A
Dimensions
- Panel Size (HxW): 7.9" x 5"
- Panel Size (HxW): 200 x 127 mm
The BEP 900-ACM6W-110V is a clean and compact solution for AC distribution, delivering reliable breaker protection in a practical format without integrated meters.
