ID
1330823
$ 350.07
1-2 weeks delivery time
-
+

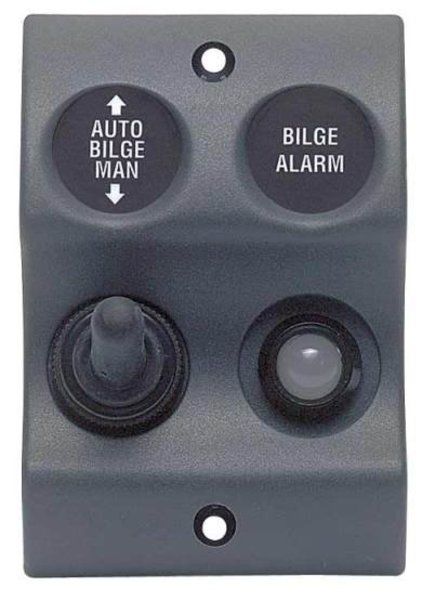

The BEP 900-BA/24V is a compact Micro Series bilge pump control panel with integrated bilge alarm, designed for 24V marine electrical systems. It includes 1 On/Off/On switch for Auto/Manual bilge pump control, plus a warning light and alarm for high water level indication. The panel uses green LED backlit labels (red when ON), features switches rated to 20A DC, and is built to a waterproof rating of IP56. Overall panel dimensions are 3.4" x 2.3" x 1.2" (86 x 58 x 28 mm).
- Description
- Ask a Question
-
BEP 900-BA/24V – Bilge Alarm & Bilge Pump Control Panel, 24V, Micro Series, IP56, 20A DC
The BEP 900-BA/24V is a compact Micro Series control panel designed for bilge pump control and high water level alarm indication in 24V marine electrical installations. It combines an easy-to-use Auto/Manual switch with integrated alarm and warning light functions to support reliable bilge monitoring onboard.
Main Features
- System voltage: 24V
- Function: Bilge pump control panel with bilge alarm
- Switch included: 1 x On/Off/On switch for Auto/Manual bilge pump control
- Alarm indication: Warning light and alarm for high water level alarm
- Backlit labels: Green LED backlit labels; red when ON
- Switch rating: 20A DC
- Waterproof rating: IP56
Dimensions
Parameter Value Panel size (inches) 3.4" x 2.3" x 1.2" Panel size (mm) 86 x 58 x 28 mm
Labels
- Full range of text or graphic labels available; mix n’ match labels and panels to suit
- Label set LBL-MIC included; additional label sets available
Important Note
- Float switch ordered separately – Part # SB1-FS
-
