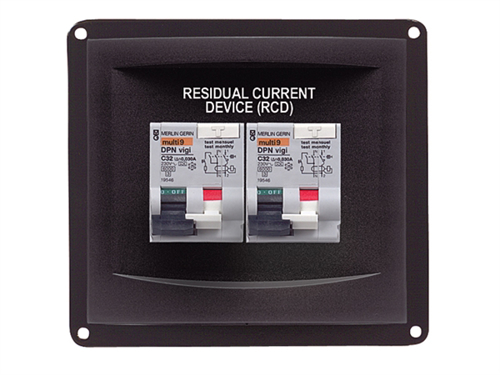

BEP 900-RCD-2X16A – RCD Panel, 2x16A, 400V AC Insulation, 30mA Shock Trip, 300mA Fire Trip, 6000A Make/Break, 115 x 127 x 65 mm

ID 1259718

$ 884.79

1-2 weeks delivery time

- +

Add to cart

The BEP 900-RCD-2X16A is a panel-mounted RCD switch panel with a 2 x 16A rating, designed to provide residual current protection and circuit breaker functionality (RCBO type) for AC electrical systems. It features an insulation rating of 400V AC, 6000A make/break current, and includes a 30mA trip rating against electric shocks plus 300mA trip protection against fire risks. The panel size is 4.5" x 5" x 2.5" (115 x 127 x 65 mm), with a recommended cutout clearance of 3/8" (10 mm) inside all external edges. Order reference: 00598742. Barcode: 001870216011745.

Description
Ask a Question

BEP 900-RCD-2X16A – RCD Panel, 2x16A, 400V AC Insulation, 30mA Shock Trip, 300mA Fire Trip, 6000A Make/Break, 115 x 127 x 65 mm

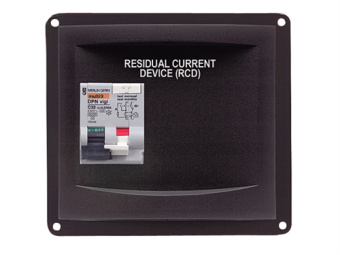

The BEP 900-RCD-2X16A is a panel-mounted RCD switch panel designed to provide residual current protection for AC electrical installations. These RCD panels also act as a circuit breaker (RCBO type) and are intended to be mounted separately from the main AC panel due to their mounting dimensions.

Product Identifiers
- Supplier code: 900-RCD-2X16A
- Order number: 00598742
- Barcode: 001870216011745
- Type: RCD switch panel
Main Electrical Ratings
- Fuse / Rating: 2 x 16A
- Device type: RCD Panel (RCBO type)
- Insulation rating: 400V AC
- Make/Break current: 6000A
- Trip rating (shock protection): 30mA
- Trip protection (fire risk protection): 300mA
Dimensions

Parameter Imperial Metric

Overall size (H x W x D) 4.5" x 5" x 2.5" 115 x 127 x 65 mm

Installation Notes
- Due to different mounting dimensions, this RCD panel is designed to be mounted separately from the main AC panel
- Cutout clearance: 3/8" (10 mm) inside all external edges
