The BEP 900-BA-B is a compact Micro Series bilge pump control panel with integrated bilge alarm, designed for reliable bilge pump control and high water level warning. It includes 1 On/Off/On switch for Auto/Manual operation, plus a warning light and alarm for high water level indication. The panel uses green LED backlit labels (red when ON), features 20A DC rated switches, and is rated IP56 waterproof. Overall dimensions are 3.4" x 2.3" x 1.2" (86 x 58 x 28 mm).
- Description
- Ask a Question
-

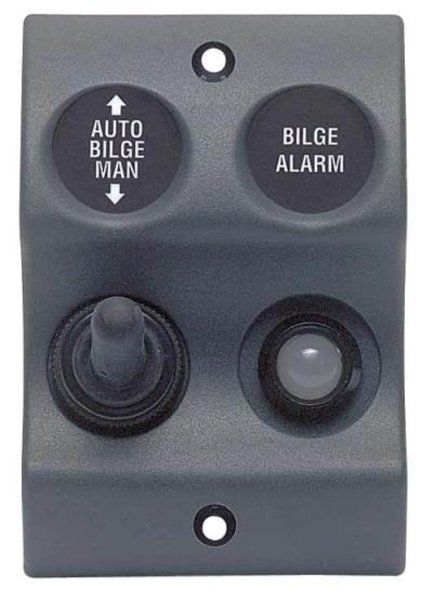

BEP 900-BA-B – Bilge Alarm & Bilge Pump Control Panel, Micro Series, IP56, 20A DC
The BEP 900-BA-B is a compact Micro Series control panel designed to manage bilge pump operation and provide a high water level alarm indication. It combines a dedicated Auto/Manual control switch with integrated warning light and alarm functions for bilge monitoring on board.
Key Features
- Function: Bilge pump control panel with bilge alarm
- Switch included: 1 x On/Off/On switch for Auto/Manual control
- Alarm indication: Warning light and alarm for high water level alarm
- Backlit labels: Green LED backlit labels; red when ON
- Switch rating: 20A DC
- Waterproof rating: IP56
Dimensions
Parameter Value Panel size (inches) 3.4" x 2.3" x 1.2" Panel size (mm) 86 x 58 x 28 mm
Label Information
- Full range of text or graphic labels available; mix n’ match labels and panels to suit
- Label set LBL-MIC included; additional label sets available
Important Note
- Float switch ordered separately – Part # SB1-FS
-
