ID
823870
$ 145.94
1-2 weeks delivery time
-
+

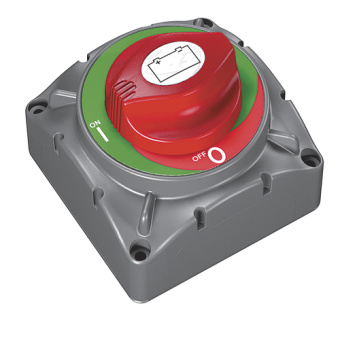

The BEP 720 is a heavy-duty On/Off battery switch designed for larger vessels and high electrical loads, rated at 600A continuous, 800A intermittent (5 min) and 2500A cranking (10 sec) at 48V DC. It features tin-plated copper studs & nuts, is ignition-protected, supports rear panel or surface mounting, and uses a proven self-cleaning sliding copper contact design for reliable circuit isolation.
- Description
- Ask a Question
-
BEP 720 – Heavy-Duty Battery Switch 48V DC, On/Off, 600A Continuous, 2500A Cranking (10 sec)
The BEP 720 is a heavy-duty battery switch designed for larger vessels and applications requiring reliable isolation of high electrical loads. It is suitable for handling demanding power requirements and is rated at 600A continuous with high cranking capability for starting large diesel engines.
Key Features
- Heavy-duty battery switch for high electrical loads
- Rated at 600A continuous and 2500A cranking (10 sec)
- Rear panel or surface mount installation
- Self-cleaning sliding copper contact design
- Can be locked with a padlock for safe circuit isolation
- Tin-plated copper studs and nuts
- Ignition-protected
Technical Specifications
Part Number 720 OEM Number 720B Mounting Recessed or surface mount Operation On/Off Voltage 48V DC Continuous Current 600A Intermittent Rating (5 min) 800A Cranking Rating (10 sec) 2500A Studs 2 x 1/2" (12mm) Recommended Cable to Meet Rating (AWG / mm²) 2x 3/0 / 2x 95mm² Dimensions (L x W x H) 4" x 4" x 3.5" (102 x 102 x 90 mm) -
