The BEP 719-140A-DVSR is a square battery charging and distribution cluster designed for triple outboard engine installations with four battery banks, using multiple DVSRs to provide combined charging from all three engines into the house battery. It supports 125A continuous DVSR charging current and features a 275A continuous battery switch rating, delivering automatic multi-bank battery management for complex outboard setups.
- Description
- Ask a Question
-

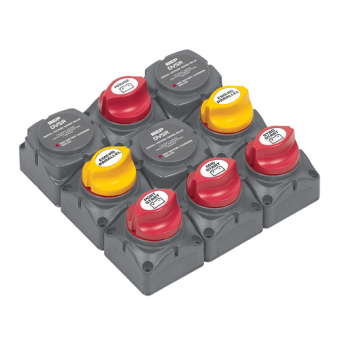

BEP 719-140A-DVSR – Dual Battery Charging Cluster, Square, for Triple Outboard Engines / 4 Battery Banks (207 x 207 x 75 mm)
The BEP 719-140A-DVSR is a battery charging and distribution cluster designed for triple outboard engine installations with four battery banks. This system uses multiple DVSRs off each start battery to provide combined charging from all three engines into the house battery via DVSR operation.
Application
- Triple outboard engines
- Four battery banks
Key Features
- Battery charging and distribution cluster for multi-engine systems
- Designed for triple outboard installations with four battery banks
- Multiple DVSR operation for combined charging into the house battery
- Square orientation
Technical Specifications
Engine Type Triple outboard Battery Banks 4 DVSR Yes Orientation Square Part Number 719-140A-DVSR Dimensions (L x W x H) 8.1" x 8.1" x 3" (207 x 207 x 75 mm) DVSR Charging Current 125A continuous Battery Switch Rating 275A continuous -
