The BEP 720-MDO-EP is a remotely activated emergency parallel switch for 12V/24V systems (both battery banks must be the same voltage), providing a high-current emergency parallel connection operated via a dash-mounted momentary button. It enables a 10-minute emergency parallel function (no voltage sensitive function) and includes manual override, with a 500A rating and recommended cabling of 2x 3/0 AWG (95mm²) for demanding marine installations.
- Description
- Ask a Question
-

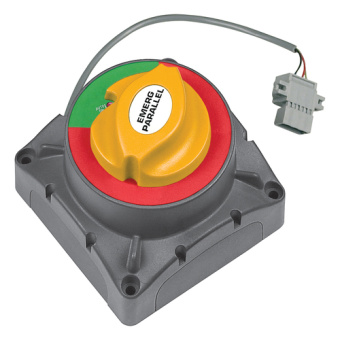

BEP 720-MDO-EP – Remotely Activated Emergency Parallel Switch, 12/24V, 500A Rating, 10-Min Emergency Parallel
The BEP 720-MDO-EP is a remotely activated emergency parallel switch designed to provide a high-current parallel connection for emergency starting of large engines. The emergency parallel function is operated via a momentary button on the dash, which will parallel the batteries for 10 minutes. After 10 minutes, the switch turns off to reduce the risk of flattening start batteries if a parallel switch is inadvertently left on.
Designed for longevity in the marine environment, the switch uses tinned copper conductors, stainless steel nuts, and high temperature, fibre reinforced plastics. The unit is ignition protected, provides On/Off switching operation, and may be recessed or surface mounted.
Key Features
- Remotely activated emergency parallel connection
- 10 minute emergency parallel function (no voltage sensitive function)
- Operated via a momentary dash button
- Manual override option
- Ignition protected
- On/Off switching operation
- Recessed or surface mount installation
Electrical Notes
- 12V/24V operation (both battery banks must be the same voltage)
Technical Specifications
Part Number 720-MDO-EP Voltage 12/24V Rating 500A Function Emergency Parallel Only Cable to Meet Rating 2x 3/0 AWG (95mm²) Dimensions (L x W x H) 4" x 4" x 4.3" (102 x 102 x 110 mm) -
