The BEP 720-MDO is a motor-driven remote operated battery switch with an optical sensor, designed to mount close to the battery to reduce cable lengths and improve installation efficiency. Rated at 500A continuous, 700A intermittent (5 min) and 2500A cranking (10 sec), it operates on 9.5–32V DC and supports remote isolation for high-load circuits such as bow and stern thrusters, with low standby current draw (<5mA) and the ability to switch different voltage circuits.
- Description
- Ask a Question
-

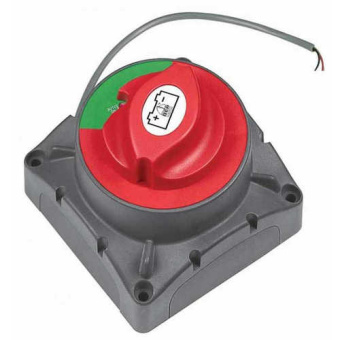

BEP 720-MDO – Remote Operated Battery Switch with Optical Sensor, 9.5–32V DC, 500A Continuous, 2500A Cranking (10 sec)
The BEP 720-MDO is a motor-driven remote operated battery switch designed to be installed very close to the battery, enabling remote operation while helping reduce cable lengths and cable sizes. This can reduce installation labor and provide savings in both cost and copper cable weight. The 720-MDO includes an optical sensor and provides additional switching flexibility for advanced installations.
Key Features
- Motor-driven battery switch for remote operation
- Can be mounted alongside the battery to reduce cable lengths and cable sizes
- Reduced installation labor due to shorter battery cable runs
- Manual override option to meet CE/ABYC requirements
- LED status identification for remote control switch
- Surface or rear panel mounting
- Uses interchangeable labelling system (Part # 713 or 715)
Optical Sensor Benefits (720-MDO Only)
- Same easy connection for standard installation
- Ability to control different voltage circuits
- Can be used to switch positive or negative lines
- Main contacts can be isolated from control circuit allowing operation via another battery source
- Low standby current draw (<5mA)
Technical Specifications
Part Number 720-MDO Mounting Recessed or surface mount Voltage 9.5–32V DC Function On/Off Continuous Current 500A Intermittent Rating (5 min) 700A Cranking Rating (10 sec) 2500A Studs 2 x 1/2" (12 mm) Cable to Meet Rating 3/0 AWG (95mm²) Dimensions (L x W x H) 4" x 4" x 4.33" (102 x 102 x 110 mm) -
