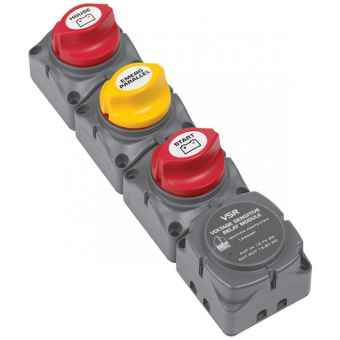

BEP 716-V-140A-DVSR – Dual Battery Charging Cluster, Vertical, for Single Engine / 2 Battery Banks

ID 823866

$ 357.40

1-2 weeks delivery time

- +

Add to cart

The BEP 716-V-140A-DVSR is a vertical dual battery charging cluster for single inboard or outboard engines with two battery banks, designed to replace a traditional battery selector switch by connecting existing wiring to the 716 cluster with no extra wires required. It supports DVSR operation, providing automatic battery management with 125A continuous DVSR charging current and a 275A continuous battery switch rating, and it replaces battery isolator systems to help prevent flat start batteries.

Description
Ask a Question

BEP 716-V-140A-DVSR – Dual Battery Charging Cluster, Vertical, for Single Engine / 2 Battery Banks (276 x 69 x 75 mm)

The BEP 716-V-140A-DVSR is a vertical battery charging and distribution cluster designed for single inboard or outboard engines with two battery banks. It is an ideal replacement for a traditional battery selector switch: remove the selector switch and connect the existing wiring to the 716 cluster, with no extra wires required for a fully automatic battery management system.

Application

Single outboard dual battery bank
Single alternator inboard engine dual battery bank

The 716 cluster also replaces battery isolator systems and helps prevent flat start batteries.

Key Features

Replacement for battery selector switch (connect existing wiring)
No additional wiring required
Designed for a single engine with two battery banks
DVSR operation for automatic battery management
Vertical orientation

Technical Specifications

Engine Type	Single inboard or outboard
Battery Banks	2
DVSR	Yes
Orientation	Vertical
Part Number	716-V-140A-DVSR
Dimensions (L x W x H)	10.9" x 2.7" x 3" (276 x 69 x 75 mm)
DVSR Charging Current	125A continuous
Battery Switch Rating	275A continuous
