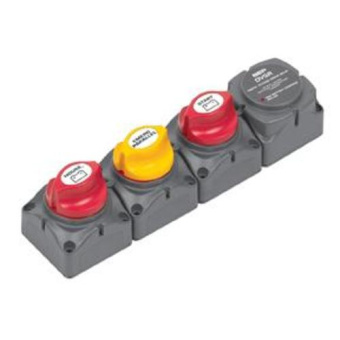

BEP 716-H-140A-DVSR – Dual Battery Charging Cluster, Horizontal, for Single Engine / 2 Battery Banks

ID 823864

$ 368.68

1-2 weeks delivery time

- +

Add to cart

The BEP 716-H-140A-DVSR is a horizontal dual battery charging cluster for single inboard or outboard engines with two battery banks, designed as a direct replacement for a traditional battery selector switch with no additional wiring required. It supports DVSR operation, with 125A continuous DVSR charging current and a 275A continuous battery switch rating, providing an automatic battery management solution and replacing battery isolator systems.

Description
Ask a Question

BEP 716-H-140A-DVSR – Dual Battery Charging Cluster, Horizontal, for Single Engine / 2 Battery Banks (276 x 69 x 75 mm)

The BEP 716-H-140A-DVSR is a horizontal battery charging and distribution cluster designed for a single inboard or outboard engine with two battery banks. It is an ideal replacement for a traditional battery selector switch: remove the selector switch and connect the existing wiring to the 716 cluster, with no extra wires required to create a fully automatic battery management system.

Application

Single outboard dual battery bank
Single alternator inboard engine dual battery bank

The 716 cluster also replaces battery isolator systems and helps prevent flat start batteries.

Key Features

Battery selector switch replacement for automatic battery management
No additional wiring required (connect existing wires to the cluster)
Designed for a single engine with two battery banks
DVSR operation

Technical Specifications

Engine Type	Single inboard or outboard
Battery Banks	2
DVSR	Yes
Orientation	Horizontal
Part Number	716-H-140A-DVSR
Dimensions (L x W x H)	10.85" x 2.75" x 3"
Dimensions (L x W x H)	276 x 69 x 75 mm
DVSR Charging Current	125A continuous
Battery Switch Rating	275A continuous
