ID
1323344
$ 105.15
1-2 weeks delivery time
-
+
The BEP 185080P/DSP is a heavy-duty single pole thermal circuit breaker rated at 80A (30V DC) with switchable reset and panel mount (flush mount) installation. It provides 3000A interrupt capacity and IP67 protection for marine and vehicle auxiliary circuits.
- Description
- Ask a Question
-

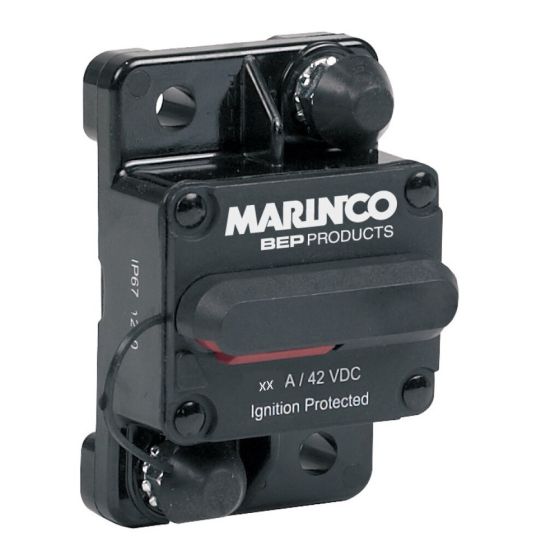

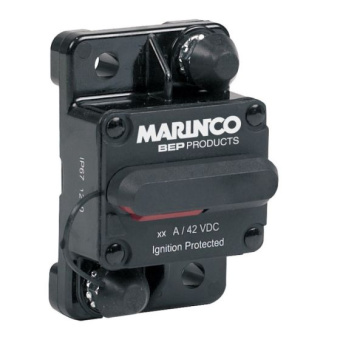

BEP 185080P/DSP – HD Thermal Circuit Breaker 80A, Switchable Reset, Panel Mount (Flush), 30V DC, IP67
The BEP 185080P/DSP is a heavy-duty single pole thermal type circuit breaker designed for reliable protection of auxiliary and accessory circuits in demanding 30V DC electrical systems. With a rated current of 80A, it is suitable for use across trucks, buses, RVs, and marine installations.
This model features a switchable reset mechanism that can be manually switched to isolate the circuit. A unique reset mechanism provides visible indication of a tripped condition, supporting safer operation and simpler troubleshooting.
Key Features
- Model: BEP 185080P/DSP
- Type: Heavy-duty single pole thermal type breaker
- Rated Current: 80A
- Rated Voltage: 30V DC
- Interrupt Capacity: 3000A
- Reset Type: Switchable Reset
- Mounting: Panel mount (flush mount)
- Terminal Stud Torque: 50 in-lb (5.6Nm) max.
- Ingress Protection Rating: IP67
Applications
- Auxiliary and accessory circuits
- Trucks, buses, RVs, and marine applications
- Battery chargers
- DC audio systems
- Engine compartment and bilge area installations (sealed series)
Temperature Ranges
- Operating Temperature: -25°F (-32°C) to 180°F (82°C)
- Storage Temperature: -30°F (-34°C) to 300°F (149°C)
Construction
- Housing: Thermoset plastic
- UL Rating: 94V0
- Material Temperature Rating: 311°F (155°C)
- Hardware: Tin plated copper studs, brass rivets, stainless steel locking nuts
- Stud Insulators: Provided on covered units with surface mount bases
Approvals
- Complies with SAEJ1625
- Complies with J1171
- Complies with UL1500 (Ignition protected)
Product Summary
Specification Value Model BEP 185080P/DSP Rated Current 80A Rated Voltage 30V DC Mounting Type Panel Mount (Flush Mount) Reset Type Switchable Reset Interrupt Capacity 3000A Ingress Protection IP67 -
