ID
823743
$ 78.39
1-2 weeks delivery time
-
+
The BEP 1001809 is a DPDT Contura switch with a momentary (On)–Off–(On) action for 12/24 V DC systems. Rated at 20 A at 12 V DC and 15 A at 24 V DC, it features 1/4" blade terminals and provides reliable dual-circuit control in marine electrical panels.
- Description
- Ask a Question
-

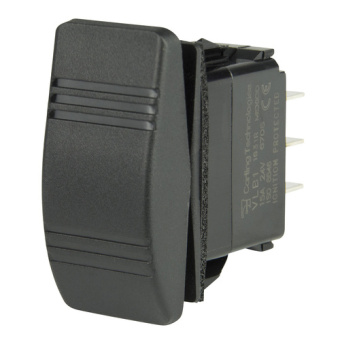

BEP 1001809 – DPDT Contura Switch, (On)-Off-(On), 12/24V DC
The BEP 1001809 is a DPDT Contura switch designed for applications requiring momentary control of two independent circuits. It features a spring-return (On)–Off–(On) switching action, making it suitable for functions where temporary activation in either direction is required.
This switch is compatible with both 12 V and 24 V DC electrical systems and is rated for high-current loads commonly found in marine and industrial environments. Its DPDT configuration allows simultaneous control of two circuits with a single switch.
- Switch type: DPDT Contura switch
- Switch action: (On) / Off / (On) – momentary
- Nominal voltage: 12 V / 24 V DC
- Current rating: 20 A at 12 V DC, 15 A at 24 V DC
- Termination type: 1/4" blade terminals
- LED indication: none
The BEP 1001809 mounts into standard BEP Rocker/Contura switch brackets and integrates seamlessly into Contura-style switch panels. It is suitable for applications such as trim tabs, power hatches, wipers, and other momentary control functions in marine electrical systems.
-
