ID
823742
$ 59.93
1-2 weeks delivery time
-
+
The BEP 1001808 is a DPDT Contura switch with On–Off–On operation for 12/24 V DC systems. Rated at 20 A at 12 V DC and 15 A at 24 V DC, it features 1/4" blade terminals and two amber LEDs for clear switch position indication in marine electrical panels.
- Description
- Ask a Question
-

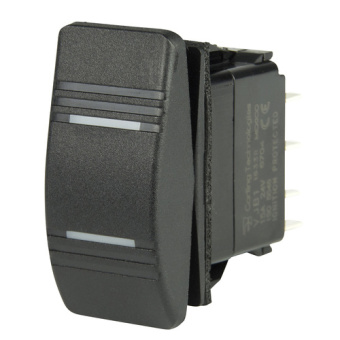

BEP 1001808 – DPDT Contura Switch, On-Off-On, 2 Amber LEDs, 12/24V DC
The BEP 1001808 is a DPDT Contura switch designed for applications requiring reliable control of two independent circuits. It features a fixed On–Off–On switching configuration, allowing selection between two circuits with a defined center-off position.
This switch is compatible with both 12 V and 24 V DC electrical systems and is rated for high-current loads commonly found in marine and industrial environments. Two integrated amber LEDs provide clear visual indication of the active switch position.
- Switch type: DPDT Contura switch
- Switch action: On / Off / On
- Nominal voltage: 12 V / 24 V DC
- Current rating: 20 A at 12 V DC, 15 A at 24 V DC
- Termination type: 1/4" blade terminals
- LED indication: 2 amber LEDs
The BEP 1001808 is suitable for use with lighting systems, trim tabs, power hatches, wipers, and other applications requiring dual-circuit control. It mounts into standard BEP Rocker/Contura switch brackets and integrates seamlessly into Contura-style switch panels.
-
