The BEP 1001811 is a DPST Contura switch with Off–On operation for 12/24 V DC systems. Rated at 20 A at 12 V DC and 15 A at 24 V DC, it features 1/4" blade terminals and a single amber LED for clear status indication in marine electrical panels.
- Description
- Ask a Question
-

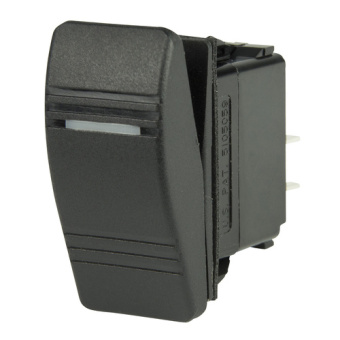

BEP 1001811 – DPST Contura Switch, Off-On, 12/24V DC, Amber LED
The BEP 1001811 is a DPST Contura switch designed for reliable control of two circuits simultaneously in marine and industrial electrical systems. It features a maintained Off–On switching action and an integrated amber LED for visual status indication.
This switch is compatible with both 12 V and 24 V DC systems and is rated for high-current applications commonly found onboard vessels. The DPST (Double Pole Single Throw) configuration allows two isolated circuits to be switched at the same time using a single actuator.
- Switch type: DPST Contura switch
- Switch action: Off / On
- Nominal voltage: 12 V / 24 V DC
- Current rating: 20 A at 12 V DC, 15 A at 24 V DC
- Termination type: 1/4" blade terminals
- LED indication: 1 × amber LED
The BEP 1001811 mounts into standard BEP Rocker/Contura switch brackets and integrates seamlessly with Contura-style switch panels. It is suitable for applications such as lighting circuits, power hatches, trim systems, and other dual-circuit control functions requiring clear visual feedback.
-
