ID
823750
$ 21.95
1-2 weeks delivery time
-
+
The BEP 1001904 is an SPDT toggle switch with momentary (On)–Off–(On) operation for 12 V DC systems. Rated at 25 A at 12 V DC, it features #6-32 screw terminals and a non-illuminated actuator, suitable for marine and automotive control applications requiring momentary switching.
- Description
- Ask a Question
-

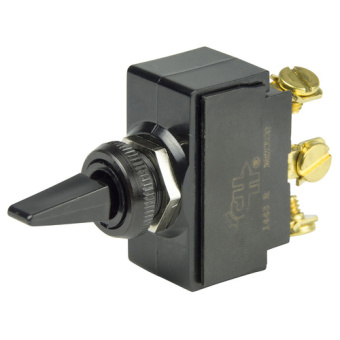

BEP 1001904 – SPDT Toggle Switch, (On)-Off-(On), 12V DC, 25A
The BEP 1001904 is an SPDT toggle switch designed for momentary control in marine, automotive, and industrial electrical systems. It features a spring-return (On)–Off–(On) switching action, allowing temporary activation of one of two circuits from a central off position.
Designed for 12 V DC systems, this switch is rated for high-current operation and is suitable for applications such as trim tabs, power hatches, horns, or other momentary control functions. The SPDT (Single Pole Double Throw) configuration enables flexible circuit selection using a single toggle.
- Switch type: SPDT toggle switch
- Switch action: (On) / Off / (On) – momentary
- Nominal voltage: 12 V DC
- Current rating: 25 A at 12 V DC
- Terminal type: #6-32 screw terminals
- Illumination: none
The BEP 1001904 is built for reliable performance in demanding environments. Its compact form factor allows easy panel installation, providing precise and dependable momentary control for essential onboard electrical systems.
-
