The BEP 1001805 is an SPDT Contura switch with On–Off–(On) operation for 12/24 V DC systems. Rated at 20 A at 12 V DC and 15 A at 24 V DC, it features 1/4" blade terminals and a single amber LED indicator, suitable for marine Contura switch panels.
- Description
- Ask a Question
-

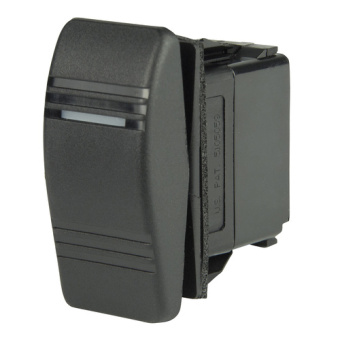

BEP 1001805 – SPDT Contura Switch, On-Off-(On), 12/24V DC
The BEP 1001805 is a single pole, double throw (SPDT) Contura switch designed for marine and industrial electrical systems where a maintained On position and a momentary On function are required. The switch operates in an On–Off–(On) configuration, with the third position being momentary.
This model is equipped with one amber LED, providing clear visual indication when the switch is active. It is compatible with BEP Rocker/Contura mounting brackets and suitable for installation in waterproof electrical panels.
- Switch type: SPDT Contura switch
- Switch action: On / Off / (On) (momentary)
- Nominal voltage: 12 V / 24 V DC
- Current rating: 20 A at 12 V DC, 15 A at 24 V DC
- Termination type: 1/4" blade terminals
- LED indication: 1 × Amber LED
The BEP 1001805 is commonly used for trim tabs, power hatches, wipers, and other marine applications requiring mixed maintained and momentary control with clear LED status indication.
-
