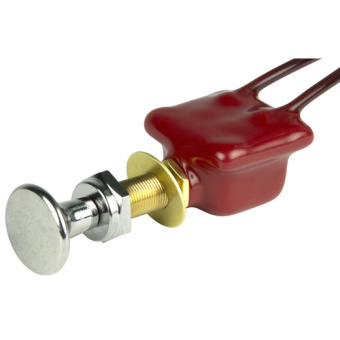

BEP 1001306 – SPST PVC-Coated Push-Pull Switch, 2-Position Off/On, 6–36V DC, 10A @ 12V, Wire Leads

ID 823698

$ 73.33

1-2 weeks delivery time

- +

Add to cart

The BEP 1001306 is an SPST push-pull switch with Off/On operation for DC systems from 6 to 36 V, rated at 10 A at 12 V DC. It features a PVC-coated body for additional protection against moisture and dirt and is supplied with two 8" long 16 AWG wire leads for direct connection. The switch is designed for panel mounting up to 5/8" thickness and is suitable for marine and automotive electrical circuits requiring simple on/off control.

Description
Ask a Question

BEP 1001306 – SPST PVC-Coated Push-Pull Switch, 2-Position Off/On

The BEP 1001306 is an SPST push-pull switch designed for simple on/off control of a single electrical circuit. It uses a push-pull action with two operating positions: Off and On. The switch body is PVC-coated to provide additional sealing against moisture and dirt, supporting reliable operation in marine and automotive environments.

The internal construction includes noncorrosive components such as a brass case, stem, terminals, and mounting hardware, along with moisture-repellent insulators. The switch is supplied with pre-attached wire leads, allowing direct connection without screw terminals.

SPST push-pull switch for single-circuit control
2 operating positions: Off / On
PVC-coated body for added environmental protection
Heavy-duty, noncorrosive construction
Screw-on type knob

Electrical & Installation Specifications

Switch Type	SPST
Operating Positions	Off / On
Nominal Voltage	6–36V DC
Current Rating	10A at 12V DC
Termination Type	Wire leads, 16 AWG, 8" length
Maximum Panel Thickness	5/8"

The BEP 1001306 can be used as a replacement for Cole Hersee part number M-606.
