The BEP 1001304 is an SPST push-pull switch with three positions—Off, On 1, and On 2—designed to control two separate circuits independently. It operates on DC systems from 6 to 36 V and is rated at 10 A at 12 V DC. The switch uses #8-32 screw terminals for secure wiring, fits panels up to 1" thick, and is built with heavy-duty, noncorrosive materials and moisture-repellent insulators for use in marine environments.
- Description
- Ask a Question
-

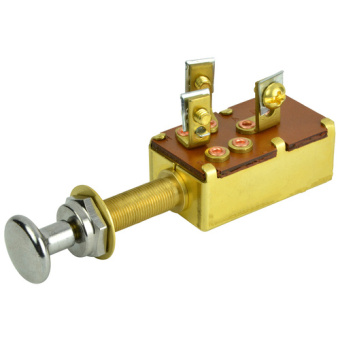

BEP 1001304 – SPST Push-Pull Switch, 3-Position (Off / On 1 / On 2)
The BEP 1001304 is an SPST push-pull switch designed to switch between two independent circuits using a three-position operating sequence. In the Off position both circuits are inactive, while On 1 and On 2 allow selection of either circuit individually.
This configuration is suitable for applications such as combining navigation lights and anchor lights with independent bulbs. The switch is constructed with heavy-duty, noncorrosive materials and incorporates moisture-repellent insulators to support reliable operation in marine electrical systems.
- Push-pull switch for independent control of two circuits
- SPST configuration
- 3 operating positions: Off / On 1 / On 2
- Heavy-duty, noncorrosive construction
- Suitable for marine lighting applications
Electrical Specifications
Switch Type SPST Operating Positions Off / On 1 / On 2 Nominal Voltage 6–36V DC Current Rating 10A at 12V DC Termination Type #8-32 screw terminals
The switch fits panels up to 1" thick and can be used as a replacement for Cole Hersee part number M-531.
-
