The BEP 1001307 is an SPST push-pull switch with two operating positions, Off and On, designed for single-circuit control in DC systems from 6 to 36 V. It is rated at 10 A at 12 V DC and features #8-32 screw terminals for secure wiring. The switch is constructed with noncorrosive materials and moisture-repellent insulators and is suitable for panel mounting up to 3/4" thickness in marine and industrial electrical applications.
- Description
- Ask a Question
-

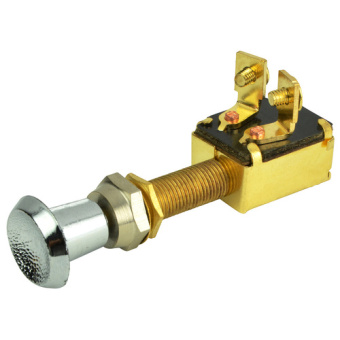

BEP 1001307 – SPST Push-Pull Switch, 2-Position Off/On
The BEP 1001307 is an SPST push-pull switch designed for simple on/off control of a single electrical circuit. It uses a push-pull operating mechanism with two positions: Off and On, making it suitable for basic circuit activation and deactivation.
The switch is built with heavy-duty, noncorrosive materials and moisture-repellent insulators to support reliable operation in marine and industrial environments. Brass components are used for the case, stem, terminals, and mounting hardware. The switch is equipped with screw-on type knobs for secure operation.
- SPST push-pull switch for single-circuit control
- 2 operating positions: Off / On
- Heavy-duty, noncorrosive construction
- Moisture-repellent insulators
- Screw-on type knob
Electrical & Installation Specifications
Switch Type SPST Operating Positions Off / On Nominal Voltage 6–36V DC Current Rating 10A at 12V DC Termination Type #8-32 screw terminals Maximum Panel Thickness 3/4"
The BEP 1001307 can be used as a replacement for Cole Hersee part number M-628.
-
