ID
823704
$ 32.01
1-2 weeks delivery time
-
+
The BEP 1001503 is an SPST push button switch with Off/(On) momentary operation, designed for DC systems from 6 to 36 V and rated at 10 A at 12 V. It uses #8-32 screw terminals for secure electrical connection and is intended for momentary control applications such as horns in marine and industrial environments.
- Description
- Ask a Question
-

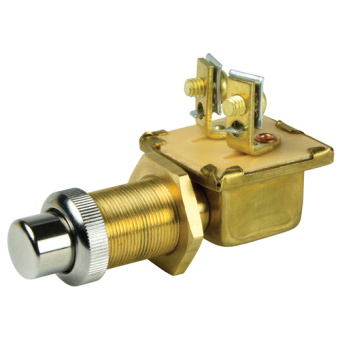

BEP 1001503 – SPST Push Button Switch Off/(On), 6–36V DC, 10A
The BEP 1001503 is an SPST push button switch designed for momentary circuit activation. It operates in an Off/(On) configuration, meaning the circuit is energized only while the button is pressed and returns to the Off position when released.
This switch is suitable for use in marine and industrial environments and is commonly used for horn circuits and other momentary control applications. It is part of the BEP push button switch range designed for reliability in low-voltage DC systems.
- SPST push button switch
- Off/(On) momentary operation
- Designed for horns and other momentary applications
- Suitable for marine and industrial use
Electrical & Installation Specifications
Switch Type SPST Operation Off / (On) – Momentary Nominal Voltage 6–36V DC Current Rating 10A at 12V DC Termination Type #8-32 screw terminals -
