The BEP 1001303 is an SPST push-pull switch with a 2-position Off/On action, designed for controlling two circuits simultaneously in DC systems from 6 to 36 V. It is rated at 10 A at 12 V DC and features #8-32 screw terminals for secure connections. Built with heavy-duty, noncorrosive materials and moisture-repellent insulators, the switch is suitable for marine and industrial environments and fits panels up to 1" thick.
- Description
- Ask a Question
-

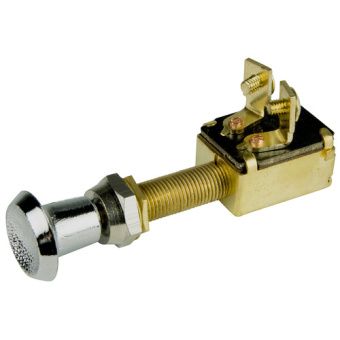

BEP 1001303 – SPST Push-Pull Switch, 2-Position (Off/On), Two Circuit
The BEP 1001303 is an SPST push-pull switch designed for reliable On/Off control of two circuits simultaneously. It is intended for use in DC electrical systems where simple and robust switching is required.
The switch operates within a nominal voltage range of 6–36V DC and is rated at 10A at 12V DC. It features heavy-duty, noncorrosive construction with moisture-repellent insulators, supporting dependable performance in marine and industrial applications.
- Push-pull switch for dual-circuit control
- SPST configuration
- 2 operating positions: Off / On (two circuit)
- Shock- and weather-resistant construction
- Suitable for marine and industrial environments
Electrical Specifications
Switch Type SPST Operating Positions Off / On (two circuit) Nominal Voltage 6–36V DC Current Rating 10A at 12V DC Termination Type #8-32 screw terminals
The switch fits panels up to 1" thick and can be used as a replacement for Cole Hersee part number M-527.
-
