ID
1403580
$ 15.65
1-2 weeks delivery time
Diameter, mm:
- 3
- 4
- 5
- 6
- 8
Length, mm:
- 12
- 16
- 20
- 25
- 30
- 35
- 40
- 45
- 50
- 60
- 70
- 80
Item:
- 10 pcs
- 25 pcs
- 50 pcs
- 100 pcs
- 200 pcs
Osculati DIN 965 / UNI 7688 machine screws are manufactured from A2 (AISI 304) stainless steel and feature a flat countersunk head with a cross-recessed drive. The tapered head is designed to sit flush within a matching countersunk recess, while the metric threaded shaft engages with compatible nuts or tapped holes. AISI 304 stainless steel provides corrosion resistance for general mechanical assemblies, equipment installations and suitable marine applications. The range includes 36 dimensional configurations across five metric thread sizes from M3 to M8, with lengths from 12 to 80 mm. Each variant is supplied in a cardboard box containing 10, 25, 50, 100 or 200 screws, depending on the selected size.
- Description
- Ask a Question
-

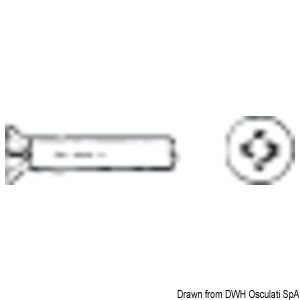

Osculati A2 AISI 304 Stainless Steel Phillips Flat Countersunk Machine Screws DIN 965 / UNI 7688
Osculati flat countersunk machine screws are manufactured from A2 (AISI 304) stainless steel and are listed according to DIN 965 / UNI 7688. They feature a flat countersunk head, a cross-recessed drive and a metric threaded shaft for fastening compatible mechanical components, fittings and equipment assemblies.
The flat countersunk head has a tapered underside designed to fit into a matching countersunk recess. When correctly installed, the head can sit flush with the mounting surface, providing a smooth finish without a protruding screw head. This design is useful where a level surface is required or where an exposed screw head could interfere with adjacent components.
The cross-recessed drive allows installation and removal using a compatible Phillips screwdriver or driver bit. The metric threaded shaft is designed to engage with a matching nut or internally threaded hole, providing a removable mechanical fastening connection.
Unlike DIN 7982 self-tapping screws, DIN 965 machine screws are intended for use with compatible pre-threaded connections rather than for forming their own threads in the mounting material. They also differ from DIN 966 machine screws, which feature a raised countersunk head with a rounded upper surface.
A2 (AISI 304) stainless steel provides corrosion resistance for general indoor, outdoor and suitable marine applications. For installations involving continuous saltwater exposure or high chloride concentrations, the suitability of the stainless steel grade should be assessed.
The range includes 36 dimensional configurations across five nominal metric thread sizes: M3, M4, M5, M6 and M8. Available lengths range from 12 to 80 mm, depending on the selected thread diameter. Each version has an individual Osculati part number and is supplied in a cardboard box with a specified quantity.
Technical Specifications
Brand Osculati Product Type Flat Countersunk Machine Screw Standards DIN 965 / UNI 7688 Material A2 / AISI 304 Stainless Steel Head Type Flat Countersunk Head Drive Type Cross-Recessed / Phillips Thread Type Metric Machine Thread Available Thread Sizes M3, M4, M5, M6, M8 Available Length Range 12–80 mm Box Quantities 10, 25, 50, 100, 200 pcs Packaging Cardboard Box Number of Variants 36 Dimensions Format Nominal Thread Diameter × Screw Length
Features and Applications
- Manufactured from A2 (AISI 304) stainless steel.
- DIN 965 / UNI 7688 flat countersunk machine screw design.
- Tapered head underside for installation in a matching countersunk recess.
- Flat head designed to sit flush with the mounting surface.
- Cross-recessed drive for use with a compatible Phillips screwdriver.
- Metric threads for fastening with compatible nuts or tapped holes.
- Suitable for appropriate mounting brackets, equipment fittings, mechanical assemblies and general fastening applications.
- Available in five nominal thread sizes and 36 dimensional configurations.
- Supplied in cardboard boxes containing 10 to 200 screws, depending on size.
Available Sizes and Part Numbers
Thread Size Length Box Quantity Osculati Part No. M3 12 mm 200 pcs A2-965-03X012 M3 16 mm 200 pcs A2-965-03X016 M3 20 mm 200 pcs A2-965-03X020 M3 25 mm 200 pcs A2-965-03X025 M3 30 mm 100 pcs A2-965-03X030 M4 16 mm 100 pcs A2-965-04X016 M4 20 mm 100 pcs A2-965-04X020 M4 25 mm 100 pcs A2-965-04X025 M4 30 mm 100 pcs A2-965-04X030 M4 35 mm 50 pcs A2-965-04X035 M4 40 mm 50 pcs A2-965-04X040 M5 20 mm 100 pcs A2-965-05X020 M5 25 mm 50 pcs A2-965-05X025 M5 30 mm 50 pcs A2-965-05X030 M5 35 mm 50 pcs A2-965-05X035 M5 40 mm 50 pcs A2-965-05X040 M5 45 mm 25 pcs A2-965-05X045 M5 50 mm 25 pcs A2-965-05X050 M6 20 mm 50 pcs A2-965-06X020 M6 25 mm 50 pcs A2-965-06X025 M6 30 mm 50 pcs A2-965-06X030 M6 35 mm 50 pcs A2-965-06X035 M6 40 mm 25 pcs A2-965-06X040 M6 45 mm 25 pcs A2-965-06X045 M6 50 mm 25 pcs A2-965-06X050 M6 60 mm 25 pcs A2-965-06X060 M8 20 mm 25 pcs A2-965-08X020 M8 25 mm 25 pcs A2-965-08X025 M8 30 mm 25 pcs A2-965-08X030 M8 35 mm 25 pcs A2-965-08X035 M8 40 mm 25 pcs A2-965-08X040 M8 45 mm 25 pcs A2-965-08X045 M8 50 mm 25 pcs A2-965-08X050 M8 60 mm 10 pcs A2-965-08X060 M8 70 mm 10 pcs A2-965-08X070 M8 80 mm 10 pcs A2-965-08X080
Size Selection
Select the required nominal metric thread size and screw length according to the components being fastened. Ensure that the screw is compatible with the corresponding nut or tapped hole and that the mounting surface accommodates the flat countersunk head.
Available lengths vary by thread size. Each dimensional configuration has a fixed box quantity as indicated in the table above.
The exact thread pitch, drive recess size, strength class and countersink dimensions are not specified in the supplied catalogue information.
-
