The FNI handrail terminal range is part of the stainless steel pulpit joints and bases series and is machined from solid AISI 316 stainless steel. Designed for Ø25 mm handrail tubes, the terminals allow fastening with a single screw where bolt installation is not possible. Three configurations are available — Right, Left and Central — all with a 35 mm overall diameter (A) and 65 mm height (H).
- Description
- Ask a Question
-
FNI AISI 316 Stainless Steel Handrail Terminals for Ø25 mm Tube, Right / Left / Central

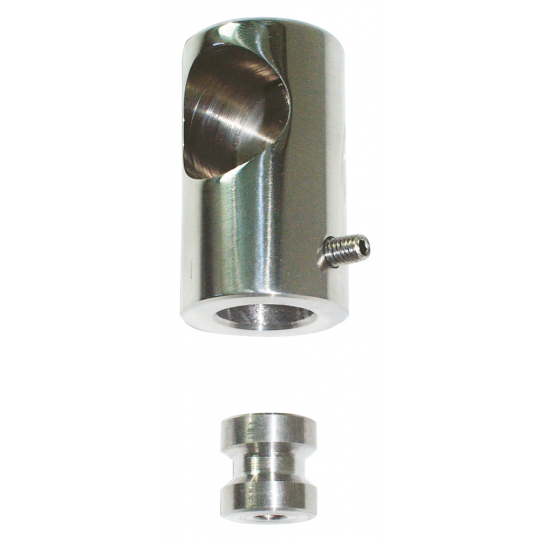

The FNI handrail terminal range is part of the stainless steel pulpit joints and bases series. Each terminal is machined from solid AISI 316 stainless steel and is designed for use with Ø25 mm handrail tubing.
The design allows fastening with a single screw where it is not possible to use a bolt. Three configurations are available: Right, Left and Central. All versions have an overall diameter (A) of 35 mm and a height (H) of 65 mm.
Available Versions
FNI Article Version Diameter (A) Height (H) For Tube Ø 2928325D Right 35 mm 65 mm 25 mm 2928325S Left 35 mm 65 mm 25 mm 2928335 Central 35 mm 65 mm 25 mm
Technical Features
- Product type: Handrail terminal
- Category: Stainless steel pulpit joints and bases
- Material: AISI 316 stainless steel
- Construction: Machined from solid
- Compatible tube diameter: Ø25 mm
- Overall diameter (A): 35 mm
- Height (H): 65 mm
- Fastening: Single-screw fastening where bolt installation is not possible
- Available versions: Right, Left and Central
-
