The FNI 2942022 central handrail bracket is part of the stainless steel pulpit joints and bases range and is designed to support Ø22 mm handrail tubing. Made of AISI 316 stainless steel, it features a 60° inclined support and a mounting base with two fixing holes. Overall dimensions are 37 mm (A), 32 mm (B) and 52 mm (H).
- Description
- Ask a Question
-

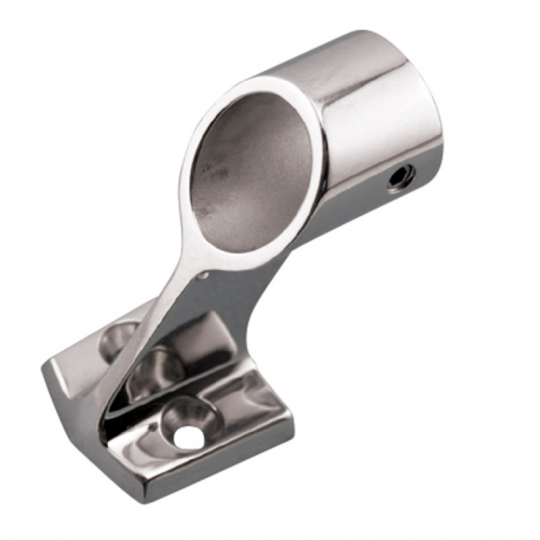

FNI 2942022 AISI 316 Stainless Steel 60° Central Handrail Bracket for Ø22 mm Tube
The FNI 2942022 central handrail bracket is part of the stainless steel pulpit joints and bases range and is designed for supporting Ø22 mm handrail tubing.

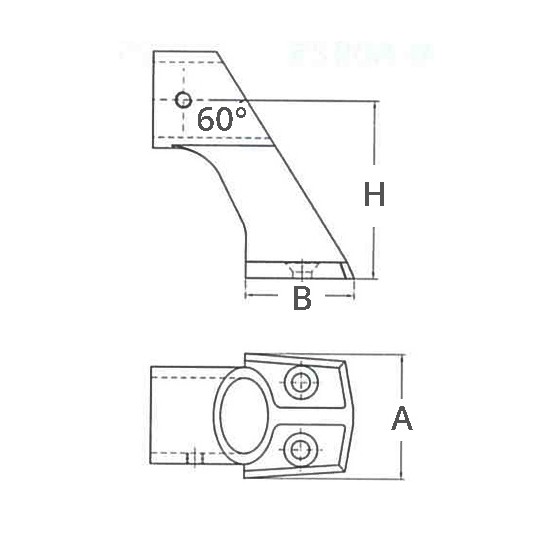

The bracket is manufactured from AISI 316 stainless steel and features a 60° inclined support. Its mounting base has two fixing holes, while the overall dimensions are A 37 mm, B 32 mm and H 52 mm.
Technical Specifications
Brand FNI Article 2942022 Product Type Central handrail bracket Category Stainless steel pulpit joints and bases Material AISI 316 stainless steel For Tube Diameter Ø22 mm Support Angle 60° Dimension A 37 mm Dimension B 32 mm Height (H) 52 mm EAN 8052282022715
Key Features
- Central handrail support for Ø22 mm tubing
- Made of AISI 316 stainless steel
- 60° inclined support
- Mounting base with two fixing holes
- Dimension A: 37 mm
- Dimension B: 32 mm
- Overall height: 52 mm
-
