ID
1396512
$ 11.43
1-2 weeks delivery time
Diameter, mm:
- 22
- 25

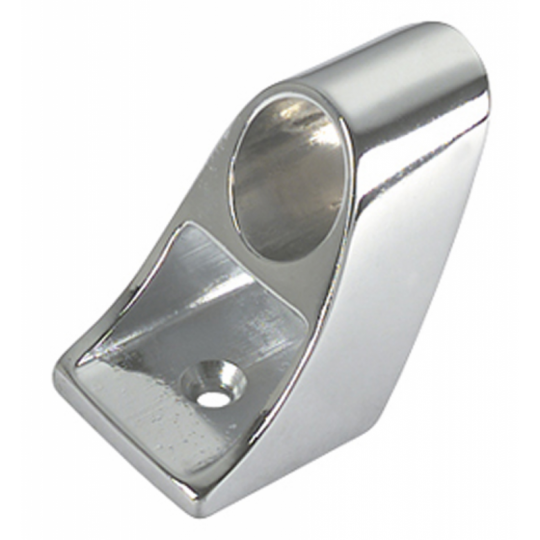

The FNI central handrail bracket is part of the stainless steel pulpit joints and bases range and is designed to support Ø22 mm or Ø25 mm handrail tubing. Made of AISI 316 stainless steel, the bracket features a 60° inclined configuration. Both versions have the same dimensions: 35 mm width (A), 33 mm depth (B) and 38 mm height (H).
- Description
- Ask a Question
-
FNI AISI 316 Stainless Steel 60° Central Handrail Bracket, Ø22–25 mm
The FNI central handrail bracket is part of the stainless steel pulpit joints and bases range and is designed for supporting handrail tubing in pulpit and railing installations.
The bracket is made of AISI 316 stainless steel and features a 60° inclined configuration. It is available for Ø22 mm and Ø25 mm tubes. Both versions share the same overall dimensions of A 35 mm, B 33 mm and H 38 mm.
Available Versions
FNI Article Tube Ø A B Height (H) Angle EAN 2944022 22 mm 35 mm 33 mm 38 mm 60° 8052282022746 2944025 25 mm 35 mm 33 mm 38 mm 60° 8052282022753
Technical Features
- Product type: Central handrail bracket
- Category: Stainless steel pulpit joints and bases
- Material: AISI 316 stainless steel
- Support angle: 60°
- Available tube diameters: Ø22 mm and Ø25 mm
- Dimension A: 35 mm
- Dimension B: 33 mm
- Height (H): 38 mm
-
