ID
1396509
$ 8.33
1-2 weeks delivery time
Diameter, mm:
- 22
- 25
The FNI central handrail bracket is part of the stainless steel pulpit joints and bases range and is designed as an intermediate support for Ø22 mm or Ø25 mm handrail tubing. Made of AISI 316 stainless steel, it features a 60° angled support and a two-hole mounting base. The Ø22 mm version measures A 40 mm, B 26 mm and H 38 mm, while the Ø25 mm version measures A 42 mm, B 29 mm and H 38 mm.
- Description
- Ask a Question
-

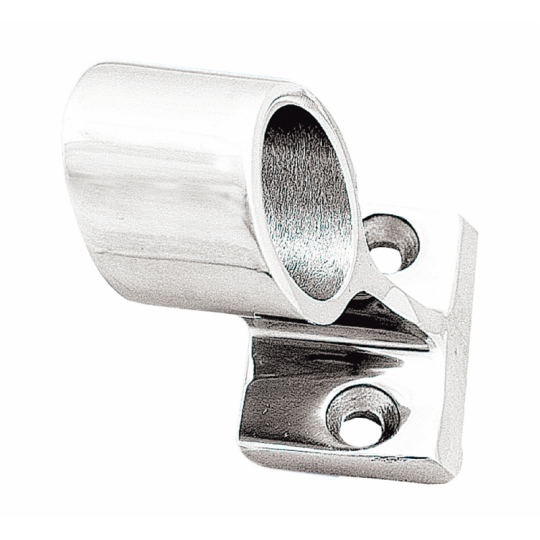

FNI AISI 316 Stainless Steel 60° Central Handrail Bracket, Ø22–25 mm
The FNI central handrail bracket is part of the stainless steel pulpit joints and bases range and is designed for intermediate support of handrail tubing.
The bracket is made of AISI 316 stainless steel and features a 60° angled support with a two-hole mounting base. Two versions are available for Ø22 mm and Ø25 mm tubes.
Available Versions
FNI Article Tube Ø A B Height (H) Angle EAN 2941022 22 mm 40 mm 26 mm 38 mm 60° 8052282022692 2941025 25 mm 42 mm 29 mm 38 mm 60° 8052282022708
Technical Features
- Product type: Central handrail bracket
- Category: Stainless steel pulpit joints and bases
- Material: AISI 316 stainless steel
- Support angle: 60°
- Available tube diameters: Ø22 mm and Ø25 mm
- Mounting base: Two fixing holes
- Dimension A: 40 mm or 42 mm depending on version
- Dimension B: 26 mm or 29 mm depending on version
- Height (H): 38 mm
-
