The Osculati Genovese Mooring Chain range is designed for fixed and dock mooring applications where windlass operation is not required. Manufactured from hot-galvanized steel and featuring elongated links, these chains provide reliable corrosion resistance and long-term durability in marine environments. Available in diameters from 6 mm to 12 mm and lengths of 50 m or 100 m, the range offers working loads from 340 kg to 1360 kg and breaking loads up to 5440 kg, making it suitable for permanent mooring systems, marina installations, docks, and mooring buoys.
- Description
- Ask a Question
-

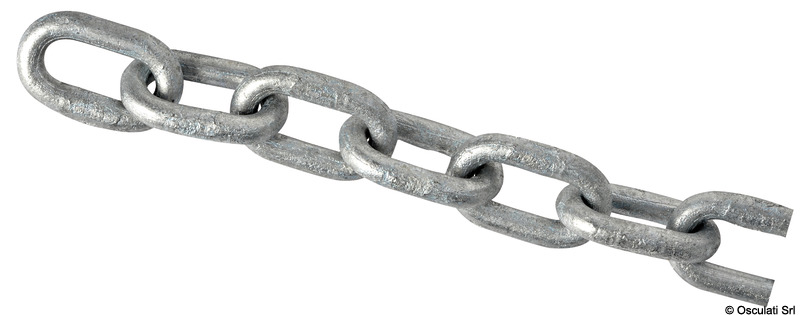

Osculati Hot-Galvanized Genovese Mooring Chain with Long Links – 6-12 mm, 50-100 m
The Osculati Genovese Mooring Chain range is manufactured from hot-galvanized steel and designed specifically for fixed mooring and dock installations. The elongated-link configuration makes these chains particularly suitable for applications where a windlass is not required while providing dependable strength and durability for long-term marine use.
The hot-galvanized finish delivers effective corrosion protection, while the long-link design offers flexibility for permanent mooring systems, marina berths, docks, and buoy installations.
Key Features
- Hot-galvanized steel construction;
- Genovese elongated-link design;
- Designed for fixed and dock mooring;
- No windlass required;
- Excellent corrosion resistance;
- Available in 50 m and 100 m lengths;
- Working loads from 340 kg to 1360 kg;
- Breaking loads up to 5440 kg.
Available Variants
Osculati Code Diameter Length Weight (kg/m) Working Load (kg) Breaking Load (kg) 01.372.06-050 6 mm 50 m 0.73 340 1360 01.372.06-100 6 mm 100 m 0.73 340 1360 01.372.07-050 7 mm 50 m 1.10 460 1840 01.372.07-100 7 mm 100 m 1.10 460 1840 01.372.08-050 8 mm 50 m 1.33 600 2400 01.372.08-100 8 mm 100 m 1.33 600 2400 01.372.10-050 10 mm 50 m 2.075 940 3760 01.372.10-100 10 mm 100 m 2.075 940 3760 01.372.12-050 12 mm 50 m 3.00 1360 5440 01.372.12-100 12 mm 100 m 3.00 1360 5440
Osculati SKU List
- 01.372.06-050 – 6 mm x 50 m
- 01.372.06-100 – 6 mm x 100 m
- 01.372.07-050 – 7 mm x 50 m
- 01.372.07-100 – 7 mm x 100 m
- 01.372.08-050 – 8 mm x 50 m
- 01.372.08-100 – 8 mm x 100 m
- 01.372.10-050 – 10 mm x 50 m
- 01.372.10-100 – 10 mm x 100 m
- 01.372.12-050 – 12 mm x 50 m
- 01.372.12-100 – 12 mm x 100 m
Applications
- Fixed mooring systems;
- Dock and marina installations;
- Mooring buoys;
- Permanent anchoring points;
- Commercial and recreational marine use.
Material
- Material: Hot-Galvanized Steel
- Chain Type: Genovese Long-Link Mooring Chain
-
