ID
1382839
$ 87.54
1-2 weeks delivery time
Diameter, mm:
- 4
- 5
- 6
- 8
- 10
- 12
- 14
- 16
- 18
- 20
Length, m:
- 5
- 25
The Catenificio Rigamonti Genovese Long Link Chain is manufactured from hot-dip galvanized steel in accordance with the DIN 5685 standard for marine, industrial, anchoring and general-purpose applications. Available in diameters from 4 mm to 20 mm and lengths of 5 m or 25 m depending on the variant, the chain provides corrosion resistance and breaking loads ranging from 700 kg to 20,000 kg. The long link design offers reliable performance for demanding fastening and handling applications while maintaining consistent dimensional accuracy.
- Description
- Ask a Question
-

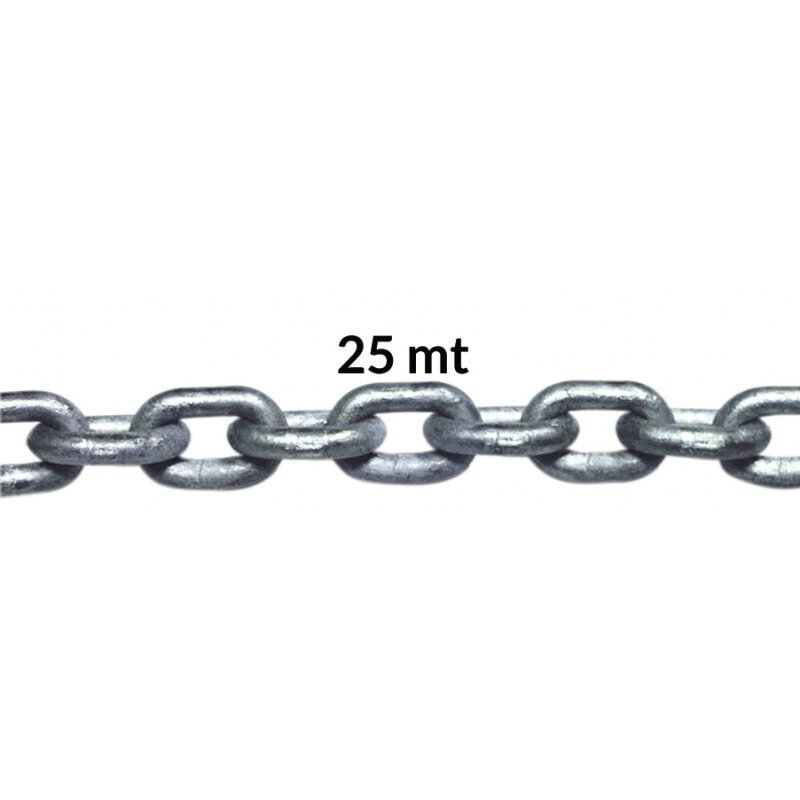

Catenificio Rigamonti Galvanized Steel Genovese Long Link Chain DIN 5685 – 4-20 mm, 5-25 m
The Catenificio Rigamonti Genovese Long Link Chain is manufactured from hot-dip galvanized steel and produced according to the DIN 5685 standard. Designed for marine, industrial and general-purpose applications, the chain provides reliable strength together with corrosion protection for long service life.
The product range includes multiple diameters from 4 mm to 20 mm and lengths of 5 m or 25 m, allowing users to select the appropriate chain for light-duty fastening through to heavy-duty marine and industrial applications. Depending on the selected size, breaking loads range from 700 kg up to 20,000 kg.
Key Features
- Hot-dip galvanized steel construction
- Manufactured according to DIN 5685 standard
- Genovese long link chain design
- Suitable for marine, industrial and general-purpose applications
- Available in multiple diameters and lengths
- Corrosion-resistant galvanized finish
- Breaking loads from 700 kg to 20,000 kg depending on the selected variant
Available Variants
Chain Diameter Available Lengths Breaking Load 4 mm 25 m 700 kg 5 mm 25 m 1,300 kg 6 mm 5 m, 25 m 1,900 kg 8 mm 5 m, 25 m 3,000 kg 10 mm 25 m 5,500 kg 12 mm 25 m 6,000 kg 14 mm 25 m 8,000 kg 16 mm 25 m 13,000 kg 18 mm 25 m 15,000 kg 20 mm 25 m 20,000 kg
Technical Specifications
Brand Catenificio Rigamonti Material Galvanized Steel Finish Hot-Dip Galvanized Chain Type Genovese Long Link Chain Standard DIN 5685 Diameter Range 4-20 mm Length Options 5 m or 25 m (depending on variant) Breaking Load Range 700-20,000 kg (depending on variant) Applications Marine, anchoring, industrial and general-purpose use -
