The Osculati AISI 316 Stainless Steel Genovese Mooring Chain range is designed for fixed and dock mooring applications where windlass operation is not required. Manufactured from marine-grade AISI 316 stainless steel and featuring elongated links, these chains provide outstanding corrosion resistance and long-term durability in harsh marine environments. Available in diameters from 3 mm to 10 mm and supplied in 50 m lengths, the range offers working loads from 110 kg to 1250 kg and breaking loads up to 5000 kg, making it suitable for marinas, mooring buoys, docks, and permanent mooring installations.
- Description
- Ask a Question
-

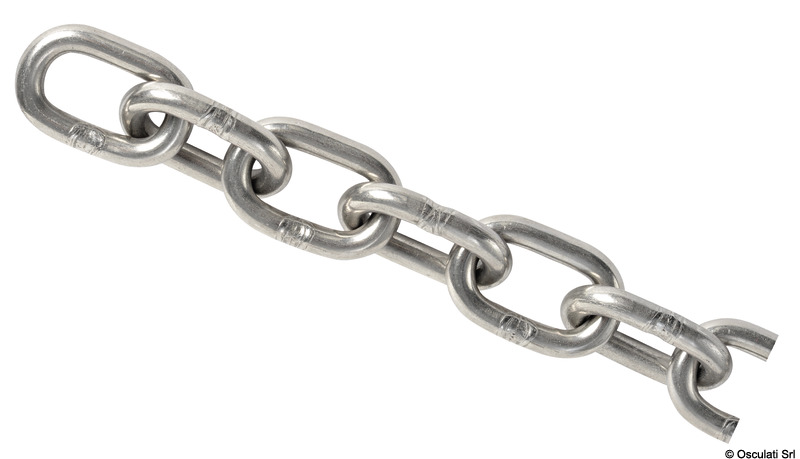

Osculati AISI 316 Stainless Steel Genovese Mooring Chain with Long Links – 3-10 mm, 50 m
The Osculati Genovese Mooring Chain range is manufactured from premium AISI 316 stainless steel and designed specifically for fixed mooring and dock installations. The elongated-link configuration makes these chains ideal for applications where a windlass is not required while providing excellent corrosion resistance and dependable long-term performance.
Marine-grade AISI 316 stainless steel ensures maximum resistance to saltwater corrosion, making these chains suitable for permanent installation in demanding marine environments. The long-link Genovese design offers flexibility and ease of handling for mooring systems, docks, marina berths, and buoy connections.
Key Features
- Marine-grade AISI 316 stainless steel construction;
- Genovese elongated-link design;
- Designed for fixed and dock mooring;
- Excellent corrosion resistance;
- No windlass required;
- Suitable for permanent marine installations;
- Available in diameters from 3 mm to 10 mm;
- Supplied in 50 m lengths.
Available Variants
Osculati Code Diameter Length Weight (kg/m) Working Load (kg) Breaking Load (kg) 01.374.03-050 3 mm 50 m 0.165 110 450 01.374.04-050 4 mm 50 m 0.30 200 800 01.374.05-050 5 mm 50 m 0.50 310 1250 01.374.06-050 6 mm 50 m 0.73 450 1800 01.374.08-050 8 mm 50 m 1.30 800 3200 01.374.10-050 10 mm 50 m 2.05 1250 5000
Osculati SKU List
- 01.374.03-050 – 3 mm x 50 m
- 01.374.04-050 – 4 mm x 50 m
- 01.374.05-050 – 5 mm x 50 m
- 01.374.06-050 – 6 mm x 50 m
- 01.374.08-050 – 8 mm x 50 m
- 01.374.10-050 – 10 mm x 50 m
Applications
- Fixed mooring systems;
- Dock and marina installations;
- Mooring buoys;
- Permanent anchoring points;
- Commercial and recreational marine use.
Material
- Material: AISI 316 Stainless Steel
- Chain Type: Genovese Long-Link Mooring Chain
-
